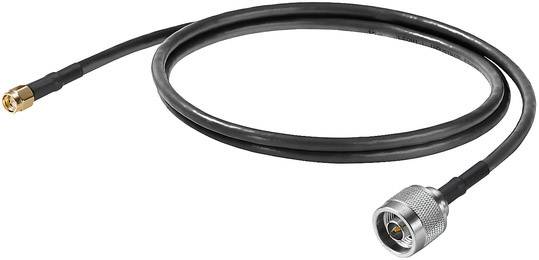

Weidmüller IE-CC-NM-SMAM-2M Antenna cable Operating voltage 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of connection: Connection 1:, N-type connector, connection 2:, SMA connector
- Length: 2 m
- bending radius min, repeated: 50.8 mm
- bending radius, min., unique: 12.7 mm
- Material sheath: Polyethylene
- Product type
Antenna cable
- Type
IE-CC-NM-SMAM-2M
- Weight
120 g
- Operating voltage
24 V DC
- Operating temperature
-40 up to +85 °C
- Max. operating temperature
+85 °C
- Min. operating temperature
-40 °C
- Depth
2 m
- Max. temperature
+85 °C
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-70 °C
2 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1888460 Weidmüller IE-CC-NM-SMAM-2M Antenna cable Operating voltage 24 V DC
User & Safety Instructions
User & Safety Instructions 1888460 Weidmüller IE-CC-NM-SMAM-2M Antenna cable Operating voltage 24 V DC
Description
• IEEE 802.11a/b/g compatible
• Voltage supply via redundant 24VDC supply inputs or Power-over-Ethernet
• Multi-SSID and VLAN-support
• Turbo roaming for seamless wireless connections
• Built-in DI/DO for monitoring and warning on-site
• QoS (WMM) support
• -40 to 75°C operating temperature (T-models)
This text is machine translated.
• Voltage supply via redundant 24VDC supply inputs or Power-over-Ethernet
• Multi-SSID and VLAN-support
• Turbo roaming for seamless wireless connections
• Built-in DI/DO for monitoring and warning on-site
• QoS (WMM) support
• -40 to 75°C operating temperature (T-models)
This text is machine translated.
