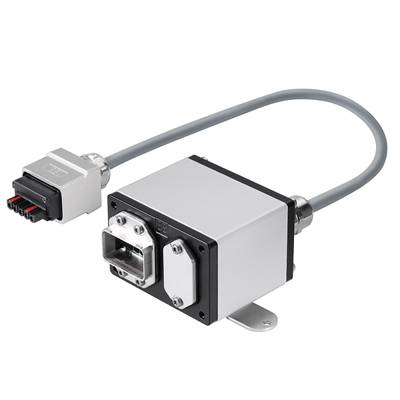

Weidmüller IE-CD-VAPM24V-Y-MA Y splitter Operating voltage 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Y-distributor
- IE-CD-VAPM 24V-Y-MA
Technical specifications
- Housing base material: Aluminum profile, painted zinc die-cast cover
- Flammability class according to UL 94: V-0
- Colour silver grey
- Contact material: Copper alloy
- Contact upper: Gold over nickel
- Pollution level: 2
- Nominal voltage: 24 V
- Product type
Y splitter
- Type
IE-CD-VAPM24V-Y-MA
- Dim
(L x W x H) 67 x 130 x 155 mm
- Weight
716.82 g
- Operating voltage
24 V
- Operating temperature
-40 up to +70 °C
- Max. operating temperature
+70 °C
- Min. operating temperature
-40 °C
- Width
130 mm
- Height
155 mm
IP65
- Max. temperature
+70 °C
- Length
67 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 202439 Weidmüller IE-CD-VAPM24V-Y-MA Y splitter Operating voltage 24 V
User & Safety Instructions
User & Safety Instructions 202439 Weidmüller IE-CD-VAPM24V-Y-MA Y splitter Operating voltage 24 V
Description
Y-distributor FreeCon, Power. Y-splitter/coupler, execution FreeCon PushPull power connector to PROFINET specification in metal.
