Buy Weidmüller IE-CDR-V14MSCPOF/VAPM-C II Profinet repeater LAN data transfer rate 100 MBit/s Operating voltage 24 V DC

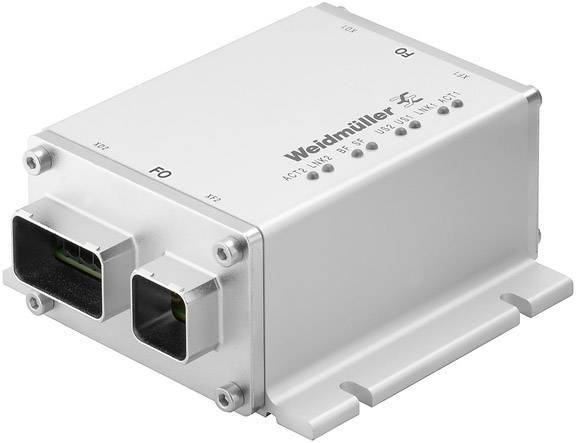

A rectangular, white electronic device with the inscription 'Weidmüller'. It has two large plug connections and several status indicators on the top surface.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Housing base material: Aluminum profile, cover zinc die cast galvanized
flammability class according to UL 94: V-0
Baud rate: 100 MB

Product type: Profinet repeater

Current consumption: 200 mA

LAN data transfer rate: 100 MBit/s

Type: IE-CDR-V14MSCPOF/VAPM-C II

Dim: (W x D) 100 mm x 53 mm

Weight: 0.77 g

Operating voltage: 24 V DC

Operating temperature: -20 up to +55 °C

Max. operating temperature: +55 °C

Min. operating temperature: -20 °C

Width: 100 mm

Depth: 53 mm

: IP65

Max. temperature: +55 °C

UKCA: yes
