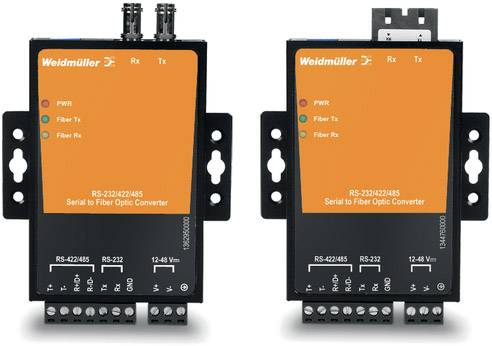

Image similar
Image similar
Weidmüller IE-MCT-1RS232/485-1ST Serial/FO converter Operating voltage 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Housing base material: Aluminum
- connection type: St connection, multimode
- supply voltage: 24 V DC
- mounting type: Mounting plate, wall mounting, screwed, TS 35, (with optional installation kit IE-DINRAILMOUNT KIT 1504430000)
- Baud rate: 50 bits/s to 921.6 kbit/s
- Wavelength: 850 nm
- Product type
Serial/FO converter
- Current consumption
140 mA
- Type
IE-MCT-1RS232/485-1ST
- Dim
(W x H x D) 90.2 x 100 x 22 mm
- Weight
130 g
- Operating voltage
24 V DC
- Operating temperature
-40 up to +75 °C
- Max. operating temperature
+75 °C
- Min. operating temperature
-40 °C
- Width
90.2 mm
- Height
100 mm
- Depth
22 mm
IP30
- Max. temperature
+75 °C
- Max. ambient temperature
+75 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1889361 Weidmüller IE-MCT-1RS232/485-1ST Serial/FO converter Operating voltage 24 V DC
User & Safety Instructions
User & Safety Instructions 1889361 Weidmüller IE-MCT-1RS232/485-1ST Serial/FO converter Operating voltage 24 V DC
