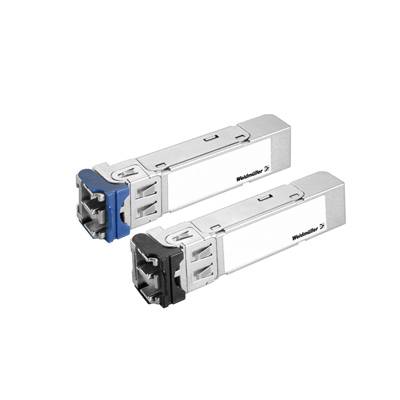

Weidmüller IE-SFP-1FESLC-T SFP module LAN data transfer rate 100 MBit/s Operating voltage 3.3 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SFP module
- IE SFP-1 FESLC-T
Technical specifications
- Connector type LC duplex
- Supply voltage 3.3 V (via Ethernet switch)
- Mounting type: Slot in SFP slot
- Product type
SFP module
- LAN data transfer rate
100 MBit/s
- Type
IE-SFP-1FESLC-T
- Weight
40 g
- Operating voltage
3.3 V
- Operating temperature
-40 up to +85 °C
- Max. operating temperature
+85 °C
- Min. operating temperature
-40 °C
- Max. temperature
+85 °C
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201924 Weidmüller IE-SFP-1FESLC-T SFP module LAN data transfer rate 100 MBit/s Operating voltage 3.3 V
User & Safety Instructions
User & Safety Instructions 201924 Weidmüller IE-SFP-1FESLC-T SFP module LAN data transfer rate 100 MBit/s Operating voltage 3.3 V
Description
SFP-module. Number of Ports: Fast Ethernet, single-mode, LC connector, 40 km, -40 °C...+85 °C. IEEE 802.3z-compliant (Gigabit modules). IEEE 802.3u-compliant (Fast Ethernet modules). LVPECL symmetric inputs and outputs (Gigabit modules). Balanced PECL inputs and outputs (Fast Ethernet modules). TTL signal detection display. Duplex LC connector in the operating plug-in. Class 1 laser product; EN 60825-1-compliant. -40 to 85 °C operating temperature (T-models).
