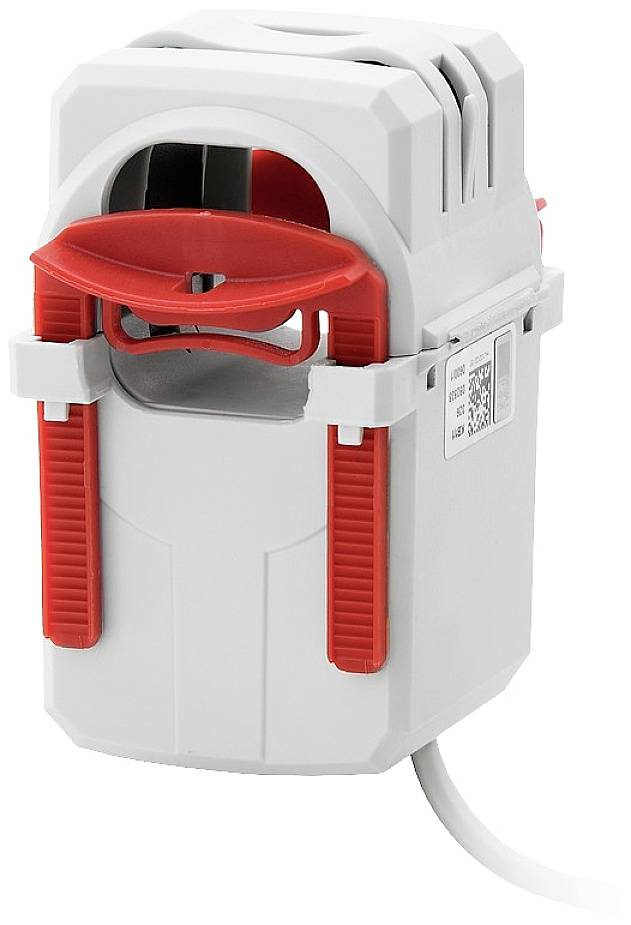

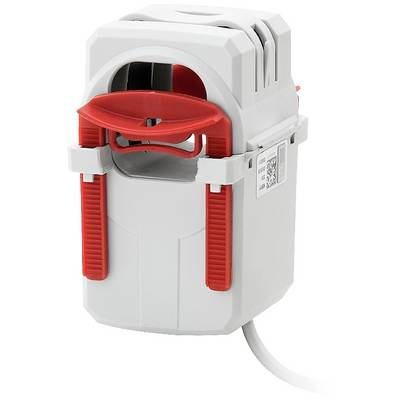

Buy Weidmüller KCMA-32-400-5A-5VA-1 2420730000 Single phase current transformer Primary current 400 A Secondary current 5 A

A grey electrical connector with a red lever for securing cables.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Input current (current) 400 A
Output current 5 A
Line feed-through diameter 32.5 mm

Technical specifications

Operating voltage Umax, max. 0.72 kV
Operating temperature: -5 °C...50 °C.
Load 5 VA
Insulation class: E
Storage temperature: -25 °C…70 °C
Nominal frequency 50 Hz
Round conductor 32.5 mm
Depth: 90 mm

Product type: Single phase current transformer

Primary current: 400 A

Secondary current: 5 A

: 5 VA

Line feed-through diameter: 32.5 mm

Accuracy class: 1

Type: KCMA-32-400-5A-5VA-1

Dim: (W x H) 59.2 mm x 96.4 mm

Weight: 999 g

Output current: 5 A

Input current: 400 A

Width: 59.2 mm

Height: 96.4 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Primary current

Power

Secondary current

Line feed-through diameter

Weidmüller KCMA-32-400-5A-5VA-1 2420730000 Single phase current transformer Primary current 400 A Secondary current 5 A Line feed-through diameter:32.5 mm 1 pc(s)

Item no:1950050

This article

400 A

5 VA

5 A

32.5 mm

Weidmüller KCMA-44-800-5A-5VA-1 2437370000 Single phase current transformer Primary current 800 A Secondary current 5 A 1 pc(s)

Item no:1914974

800 A

5 VA

5 A

Weidmüller KCMA-18-50-1A-1VA-3 HUT 2511690000 Single phase current transformer Primary current 50 A Secondary current 1 A Line feed-through diameter:18.5 mm 1 pc(s)

Item no:1915994

50 A

1 VA

1 A

18.5 mm

Weidmüller KCMA-32-500-5A-5VA-1 2420740000 Single phase current transformer Primary current 500 A Secondary current 5 A Line feed-through diameter:32.5 mm 1 pc(s)

Item no:1916526

500 A

5 VA

5 A

32.5 mm

Weidmüller KCMA-44-750-5A-5VA-1 2420710000 Single phase current transformer Primary current 750 A Secondary current 5 A Line feed-through diameter:44 mm 1 pc(s)

Item no:1916708

750 A

5 VA

5 A

44 mm

Weidmüller KCMA-18-200-1A-3VA-3 2420760000 Single phase current transformer Primary current 200 A Secondary current 1 A Line feed-through diameter:18.5 mm 1 pc(s)

Item no:1948935

200 A

3 VA

1 A

18.5 mm

Weidmüller KCMA-18-75-1A-1VA-3 2420780000 Single phase current transformer Primary current 75 A Secondary current 1 A Line feed-through diameter:18.5 mm 1 pc(s)

Item no:1948936

75 A

1 VA

1 A

18.5 mm

Weidmüller KCMA-18-100-1A-1,25VA-3 1482010000 Single phase current transformer Primary current 100 A Secondary current 1 A Line feed-through diameter:18.5 mm 1 pc(s)

Item no:1950360

100 A

1.25 VA

1 A

18.5 mm

Weidmüller KCMA-32-600-1A-5VA-1 1481980000 Single phase current transformer Primary current 600 A Secondary current 1 A Line feed-through diameter:32.5 mm 1 pc(s)

Item no:1950963

600 A

5 VA

1 A

32.5 mm

Weidmüller KCMA-32-400-1A-5VA-1 1481990000 Single phase current transformer Primary current 400 A Secondary current 1 A Line feed-through diameter:32.5 mm 1 pc(s)

Item no:1951688

400 A

5 VA

1 A

32.5 mm
