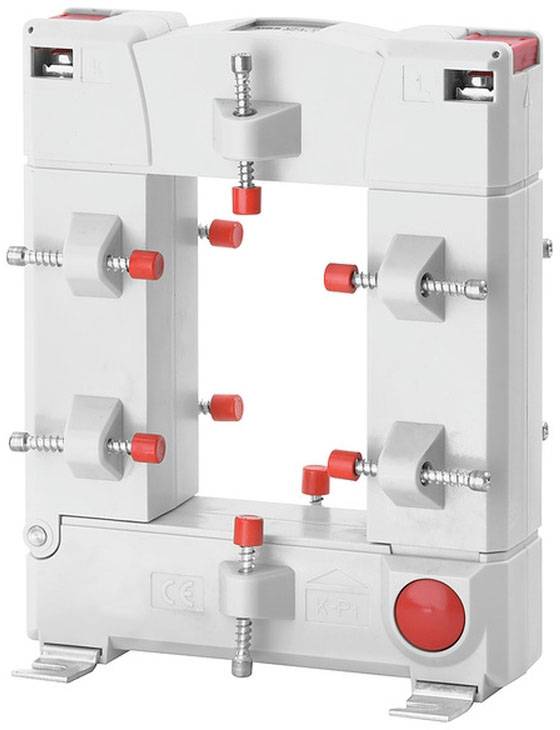

Weidmüller KCMA-RCM-58D 2656280000 LVDT Primary current 18 A Secondary current 30 mA Line feed-through (H x W):50 x 50 m
EAN:
Part number:
Item no:
Highlights & Details
- Input current (current) 18 A
- Output current 30 mA
- Line feed-through diameter 50 mm
Technical specifications
- Depth: 158 mm
- Max. operating temperature: 45 °C
- Operating temperature, min.: -5 °C.
- Conductor type: Only insulated conductors
- Installation location: Indoor use
- Operating voltage Umax, max. 0.72 kV
- Protection class: IP20
- Secondary current, min. 0.03 A
- Product type
LVDT
- Primary current
18 A
- Secondary current
30 mA
- Line feed-through diameter
50 mm
- Accuracy class
1
- Type
KCMA-RCM-58D
- Dim
(L x W) 125 mm x 58 mm
- Weight
240 g
- Output current
30 mA
- Input current
18 A
- Line feed-through (W)
50 mm
- Line feed-through (H x W)
50 x 50 mm
- Line feed-through (H)
50 mm
- Width
58 mm
- Length
125 mm
- UKCA
yes
