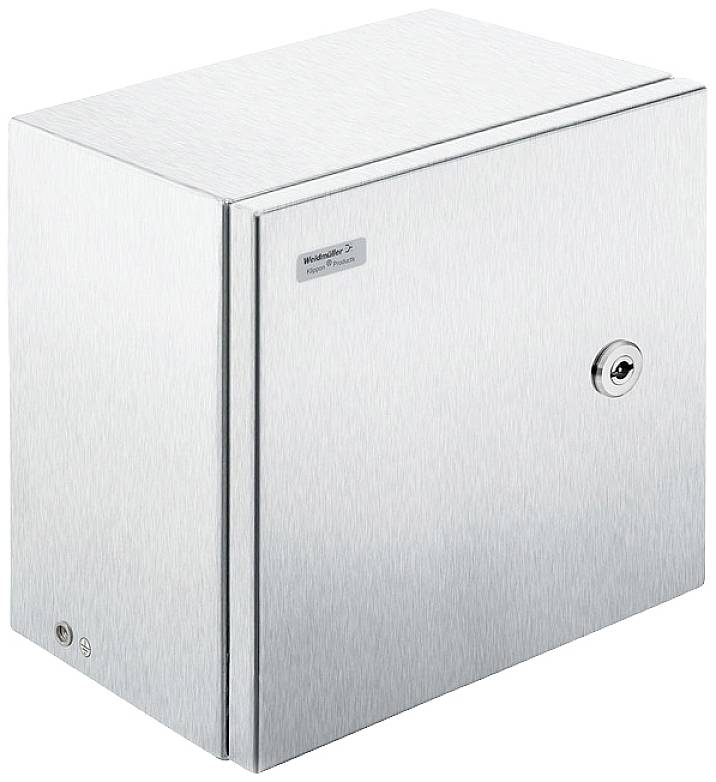

Weidmüller KEBI QL 303022 S2B1 Wall-mount enclosure 9 x 300 x 300 x 300 x 220 Stainless steel Silver 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Wall-mount enclosure
Material
Stainless steel
IP rating
IP66
Width
300 mm
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Mounting dimensions Width: 250 mm
- Mounting dimensions Height: 250 mm
- Operating temperature, max.: +85 °C
- Operating temperature, min.: -40 °C
- Lid fixing: Quarter-turn lock with slot insert
- Sealing material: PUR foamed, EPDM
- mounting bracket: Screwed
- Mounting instructions: Welded mounting bracket, mounting plate
- Grounding housing Cover: Welded M6 Stainless steel grounding bolts in the bottom part of the housing and
- earthing cover External housing: M6 earthing rivet
- Grounding housing: Internal Welded M6 stainless steel earth stud in the lower part of the housing and cover
- Flange plates: Bottom
- Case mounting: Fixing straps, mounting through the rear wall
- Material thickness: 1.25 mm
- Material thickness Cover: 1.25 mm
- Material thickness Flange: 1.25 mm
- Material thickness Housing: 1.25 mm
- Standards: DIN EN 62208, IEC 60529
- Surface: Brushed
- opening angle Cover: 125 °
- Wall thickness, max.: 2 mm
- Wall thickness, min.: 2 mm
- Packaging type
Piece
- Product type
Wall-mount enclosure
- Features
with mount plate
- Material
Stainless steel
IP66
- Factory colour
Silver
- Length
300 mm
- Width
300 mm
- Height
300 mm
- (Ø)
9 mm
- Dimensions
300 x 300 x 220 mm
- Weight
5.32 kg
- Content
1 pc(s)
- Type
KEBI QL 303022 S2B1
- Dim
(Ø x H) 9 mm x 300 mm
- RoHS-compliant
Yes
- Manufacturer part #
2470820000
- Depth
220 mm
