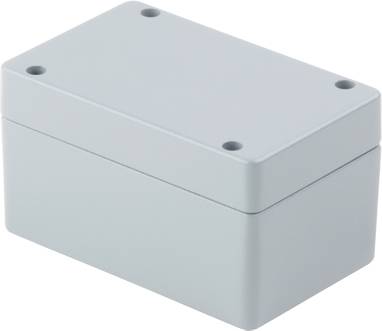

Weidmüller KLIPPON K2 342100000-10 Universal enclosure 100 x 70 x 45 Aluminium Silver 10 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Aluminium
IP rating
IP66
IP67
IP68
Width
100 mm
Height
70 mm
Datasheet (PDF)
Technical specifications
- Mounting dimensions width 88 mm
- Mounting dimensions height 42 mm
- Max. operating temperature: 80 °C
- Operating temperature, min. -40 °C
- Lid fixing: M4 Torxedel steel screws with slit
- Sealing material: Chloroprene
- Torque Lid screws 2.5 Nm
- Mounting bracket: Threaded holes M4
- Housing mounting: 4 mm holes
- Material thickness cover: 3 mm
- Material thickness housing: 3.5 mm
- Impact resistance: 10.00 J
- Product type
Universal enclosure
- Material
Aluminium
IP66
IP67
IP68
- Factory colour
Silver
- Type
Terminal box
- Width
100 mm
- Height
70 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Dim
(W x H x D) 100 x 70 x 45 mm
- RoHS-compliant
Yes
- Weight
280 g
- Depth
45 mm
- Type
KLIPPON K2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 394045 Weidmüller KLIPPON K2 342100000-10 Universal enclosure 100 x 70 x 45 Aluminium Silver 10 pc(s)
User & Safety Instructions
User & Safety Instructions 394045 Weidmüller KLIPPON K2 342100000-10 Universal enclosure 100 x 70 x 45 Aluminium Silver 10 pc(s)
