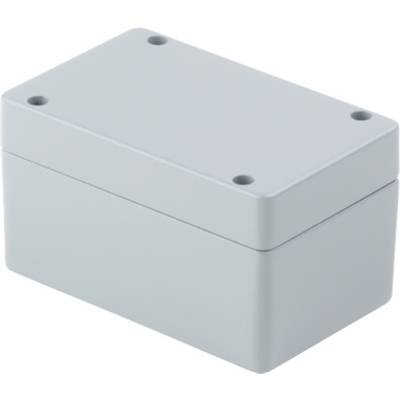

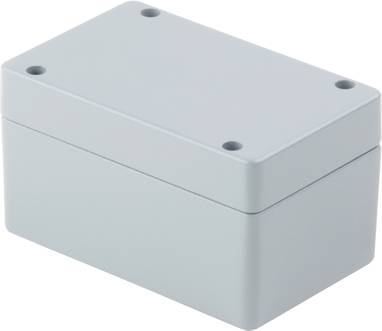

Weidmüller KLIPPON K21 573400000-5 Universal enclosure 125 x 80 x 57 Aluminium Silver 5 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Aluminium
IP rating
IP66
IP67
IP68
Width
125 mm
Height
80 mm
Datasheet (PDF)
Technical specifications
- Mounting dimensions width 113 mm
- Mounting dimensions height 52 mm
- Max. operating temperature: 80 °C
- Operating temperature, min. -40 °C
- Lid fixing: M4 Torxedel steel screws with slit
- Sealing material: Chloroprene
- Torque Lid screws 2.5 Nm
- Mounting bracket: Threaded holes M4
- Housing mounting: 4 mm holes
- Material thickness cover: 2.5 mm
- Material thickness housing: 4 mm
- Impact resistance: 10.00 J
- Product type
Universal enclosure
- Material
Aluminium
IP66
IP67
IP68
- Factory colour
Silver
- Type
Terminal box
- Width
125 mm
- Height
80 mm
- Content
5 pc(s)
- Industrial packaging
Yes
- Dim
(W x H x D) 125 x 80 x 57 mm
- RoHS-compliant
Yes
- Weight
400 g
- Depth
57 mm
- Type
KLIPPON K21
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 394046 Weidmüller KLIPPON K21 573400000-5 Universal enclosure 125 x 80 x 57 Aluminium Silver 5 pc(s)
User & Safety Instructions
User & Safety Instructions 394046 Weidmüller KLIPPON K21 573400000-5 Universal enclosure 125 x 80 x 57 Aluminium Silver 5 pc(s)
