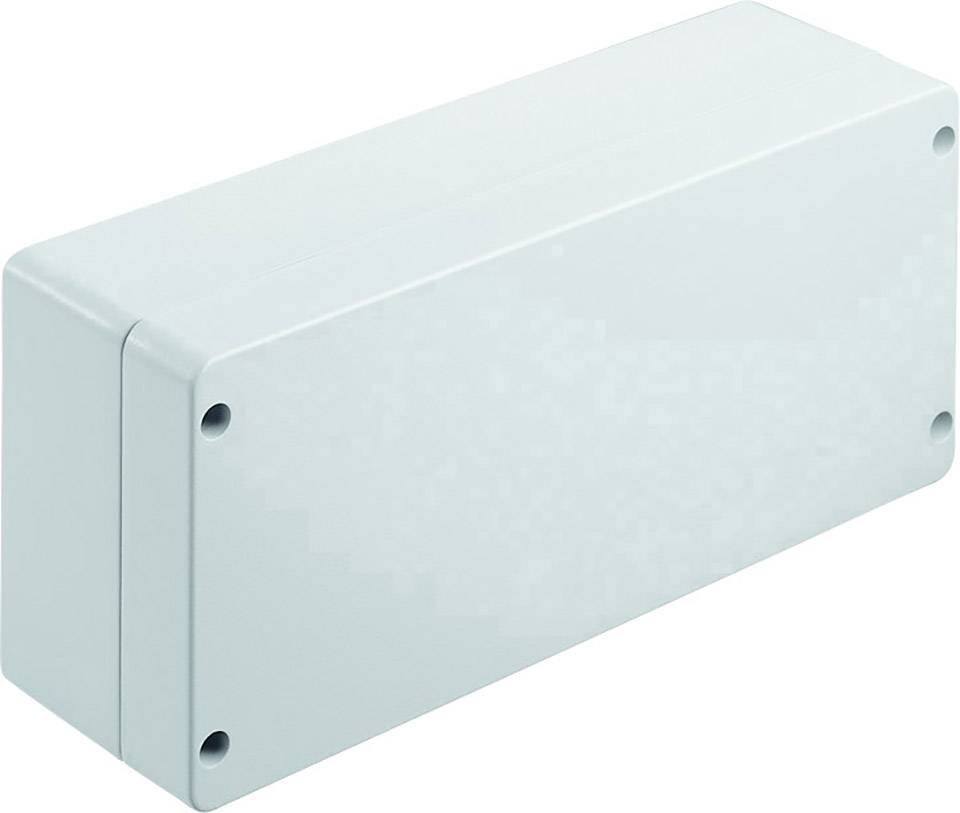

Weidmüller KLIPPON K7 VMQ RAL7001 Universal enclosure 350 x 160 x 100 Aluminium Silver-grey 1 pc(s)
EAN:
Part number:
Item no:
Material
Aluminium
IP rating
IP66
IP67
IP68
Width
350 mm
Height
160 mm
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Mounting dimensions Width: 330 mm
- Mounting dimensions Height: 140 mm
- Operating temperature, max.: +135 °C
- Operating temperature, min.: -60 °C
- Lid fixing: M5 Torxedel steel screws with slit
- Sealing material: Silicone
- Torque Lid screws: 2.5 Nm
- Mounting: Threaded holes M5
- Housing fixing: Holes 6 mm
- Material thickness: 4.6 mm
- Material thickness Cover: 3 mm
- Material thickness Housing: 4.6 mm
- Surface: Powder coated, structured
- Material
Aluminium
IP66
IP67
IP68
- Factory colour
Silver-grey
- Width
350 mm
- Height
160 mm
- Weight
3.09 g
- Content
1 pc(s)
- Type
KLIPPON K7 VMQ RAL7001
- Dim
(W x H x D) 350 x 160 x 100 mm
- RoHS-compliant
Yes
- Depth
100 mm
- Manufacturer part #
1937880000
- Product type
Universal enclosure
Documents & Downloads
Datasheet
Datasheet 1774643 Weidmüller KLIPPON K7 VMQ RAL7001 Universal enclosure 350 x 160 x 100 Aluminium Silver-grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1774643 Weidmüller KLIPPON K7 VMQ RAL7001 Universal enclosure 350 x 160 x 100 Aluminium Silver-grey 1 pc(s)
Description
Casing made of metal for mounting components. The mounting holes are outside of the sealing area.
