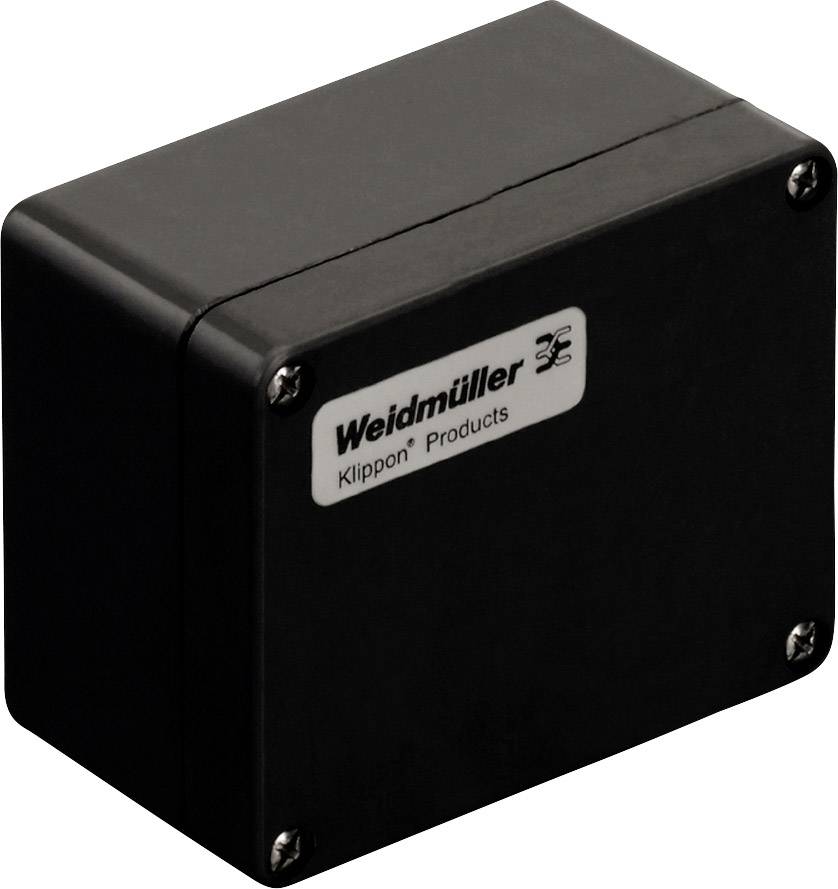

Weidmüller KLIPPON POK 081106 EX Casing 110 x 110 x 75 x 56 Fibreglass reinforced polyester Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Fibreglass reinforced polyester
IP rating
IP66
Width
110 mm
Technical specifications
- Mounting dimensions Width: 98 mm
- Mounting dimensions Height: 45 mm
- flammability class according to UL 94: V-0
- Torque Lid screws: 2.5 Nm
- Mounting instructions: Direct mounting, Mounting brackets
- Material thickness: 4.49 mm
- Material thickness Cover: 3.7 mm
- Material thickness Housing: 4.49 mm
- Sealing material: Silicone
- operating temperature, min.: -55 °C
- Operating temperature, max.: 100 °C
- Housing mounting: Mounting through the rear wall of the housing, Mounting bracket
- Cover mounting: Slotted / Phillips screws
- Packaging type
Piece
- Product type
Casing
- Features
Explosion-proof
- Material
Fibreglass reinforced polyester
IP66
- Factory colour
Black
- Type
untreated, shiny
- Length
110 mm
- Width
110 mm
- Height (min.)
56 mm
- Height
75 mm
- Dimensions
110 x 75 x 56 mm
- Weight
348 g
- Content
1 pc(s)
- Type
KLIPPON POK 081106 EX
- Dim
(L x W x H) 110 x 110 x 75 mm
- RoHS-compliant
Yes
- Manufacturer part #
1306010000
- Depth
56 mm
110
75 mm
56 mm
Plastic
IP66
1, 2
Untreated
21, 22
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2246385 Weidmüller KLIPPON POK 081106 EX Casing 110 x 110 x 75 x 56 Fibreglass reinforced polyester Black 1 pc(s) Piece
