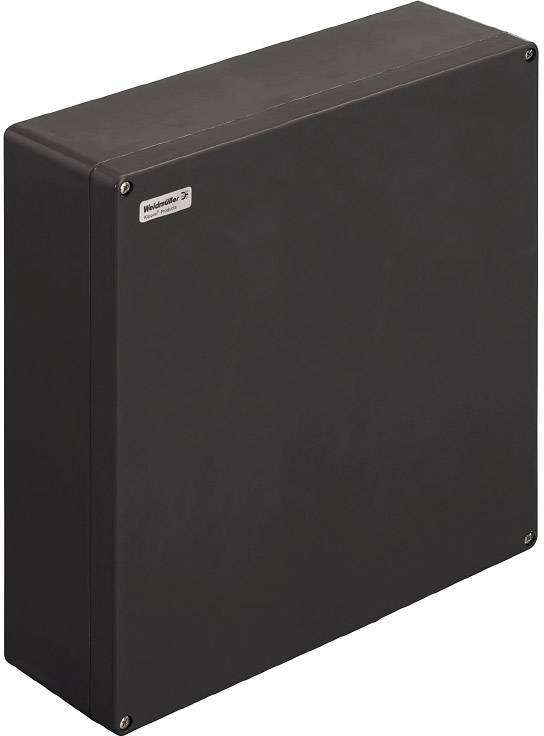

Weidmüller KLIPPON POK 404012 EX Universal enclosure 400 x 405 x 120 Polyester Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Universal enclosure
Material
Polyester
IP rating
IP66
Width
400 mm
Datasheet (PDF)
Technical specifications
- Mounting dimensions Width: 380 mm
- Mounting dimensions Height: 355 mm
- Operating temperature, max.: +100 °C
- Operating temperature, min.: -55 °C
- Cover mounting: Slotted / cross-head screws
- Gasket material: Silicone
- Torque Cover screws: 2.5 Nm
- Mounting instructions: Direct mounting, mounting brackets
- Housing mounting: Mounting through the rear wall of the housing, mounting brackets
- Height of lowest construction: 120 mm
- Material thickness: 5.99 mm
- Material thickness Cover: 5 mm
- Material thickness Housing: 5.99 mm
- Standards: DIN EN 62208 - Empty housing standard, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface: Untreated, glossy
- Packaging type
Piece
- Product type
Universal enclosure
- Features
Explosion-proof
- Material
Polyester
IP66
- Factory colour
Black
- Width
400 mm
- Height (min.)
120 mm
- Height
405 mm
- Dimensions
400 x 405 x 120 mm
- Weight
5.55 g
- Content
1 pc(s)
- Type
KLIPPON POK 404012 EX
- Dim
(W x H x D) 400 x 405 x 120 mm
- RoHS-compliant
Yes
- Manufacturer part #
1306150000
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1912429 Weidmüller KLIPPON POK 404012 EX Universal enclosure 400 x 405 x 120 Polyester Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1912429 Weidmüller KLIPPON POK 404012 EX Universal enclosure 400 x 405 x 120 Polyester Black 1 pc(s) Piece
Description
The glass fiber reinforced polyester housing provides a high-quality solution for electrical components protection. The housing is ideal for use where corrosion resistance, impact resistance and a high level of protection is required. Direct assembly into the housing or with inner mounting plate. Direct wall mounting with mounting holes or by feet.
