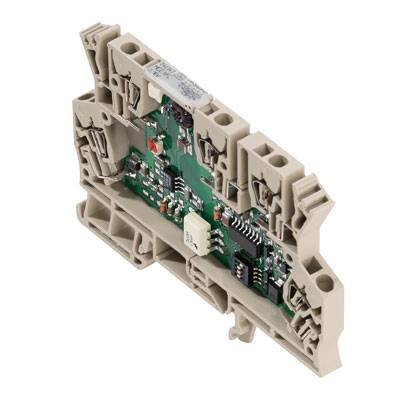

Weidmüller MCZ CFC 4-20MA 8461490000 Signal converter 10 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
20 mA
Type
MCZ CFC 4-20MA
Dim
(L x W x H) 91 x 6 x 6 mm
Connection
Pull spring
Datasheet (PDF)
Technical specifications
- Depth: 63.2 mm
- Net weight: 28.3 g
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +85 °C.
- Number of inputs: 1
- Number of outputs: 1
- Output level: PNP, Ub-0.7 V.
- Galvanic isolation: Between input / output / supply
- Accuracy ≤ ±0.15 % from FSR
- Mounting rail TS 35
- Surge voltage 1.5 kV
- Air and creepage distance > 2 mm
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 16
- Type
MCZ CFC 4-20MA
- Product type
Signal converter
- Input signal (current) (max.)
20 mA
- Dim
(L x W x H) 91 x 6 x 6 mm
- Connection
Pull spring
- Output (voltage)
PNP. Ub-0.7 V
- Output (current)
20 mA
- Operating voltage
100 V (max)
- Max. operating voltage
100 V
- Load
600 Ω
- Input signal (current)
4 mA-20 mA
- Input resistance
50 Ω
- Content
10 pc(s)
- Width
6 mm
- Height
6 mm
- Length
91 mm
- RoHS-compliant
Yes
- Current consumption
14 mA
- Max. ambient temperature
+50 °C
- Min. ambient temperature
0 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
24 VDC
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Depth
63.2 mm
- Industrial packaging
Yes
- Type
MCZ CFC 4-20MA
- Weight
28.3 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 391352 Weidmüller MCZ CFC 4-20MA 8461490000 Signal converter 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391352 Weidmüller MCZ CFC 4-20MA 8461490000 Signal converter 10 pc(s)
Description
Dc/F-converter. MCZ-SERIES, DC/f-converter, f =: 0...1 / 4 / 8 / 16 kHz. The externally powered signal converter/feeding ACT20M-CI-CO, MAS RPS/RPSH, MCZ CFC and what/WAZ 4/5 C for transmission, separation and conversion normierter DC current signals are optional in the overall width 6 mm (ACT 20 M/MCZ), 12.5 mm (WHAT / WAZ 4) or 17.5 mm (5) l executed WHAT / WAZ. The input and output circuit as well as voltage supply are completely isolated. The input signal is in a DC current/voltage value (ACT 20 M, WHAT/WAZ) or in a proportional frequency (MCZ CFC) 0...1 / 4 / 8 / 16 kHz. Signal converter the wave series are available with a cut-off frequency of 10 Hz (WHAT/WAZ 4) or 20 kHz (WHAT / WAZ 5), for fast signal processing. The feeding MAS/RPS/RPSH, external 2-conductor sensors provide suitable hard protocols to transfer and are optional RPSH (MAS). The 24 VDC supply voltage can unit side using the CH20M bus profile (ACT 20 M series) or plug-in bridges ZQV 4N (MAS/MCZ) or ZQV 2,5N (WHAT/WAZ) cross. International approvals such as ATEX Zone 2, UL C1 D2 and FM Div 2 to enable use even in potentially explosive areas.
