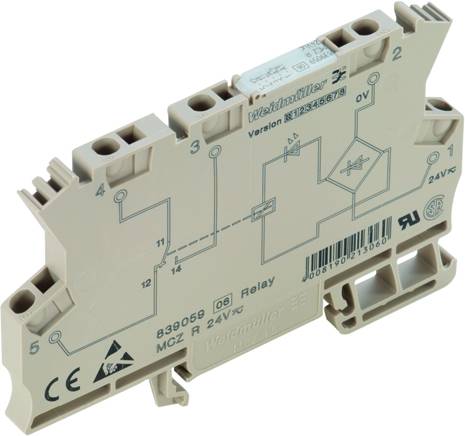

Weidmüller MCZ R 24VDC 1NO TRAK Crossbar switch 24 V DC 6 A 1 maker 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
1 maker
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Switching current (max.)
6 A
Datasheet (PDF)
Highlights & Details
Relay coupler
- Industrial packaging, pack of 10
Technical specifications
- Humidity: 95% for 30 days, slight condensation according to EN 50155
- Storage temperature: -40 °C…85 °C
- Rated power 195...500 mW
- Response/waste voltage type 14 V / 3 V DC
- Status indicator: Green LED
- Nominal switching voltage 250 V AC
- Inrush current 6 A.
- Switching power DC (ohmic), max. 120 W @ 24 V
- min Switching power 100 mA @ 12 V
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Rated voltage: 300 V
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 4 kVeff / 1 s.
- Surge voltage 4 kV (1.2/50 µs)
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 1.5 mm²
- Conductor cross-section, single-wire, min.: 0.5 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min. 0.5 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min.: 0.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.6 x 3.5 mm
- Switching voltage DC, max. 250 V
- Switch-off delay < : 50 ms
- Product type
Crossbar switch
- Type
MCZ R 24VDC 1NO TRAK
- Connection
Pull spring
- Factory colour
Beige
- Contact type
1 maker
- Contact material
AgSnO
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
- Durability
10 x 106 cycles
- Creepage distance (coil/clips)
5.5 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Depth
63.2 mm
- Width
6.1 mm
- Height
91 mm
- Dim
(W x H x D) 6.1 x 91 x 63.2 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
26.5 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391362 Weidmüller MCZ R 24VDC 1NO TRAK Crossbar switch 24 V DC 6 A 1 maker 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391362 Weidmüller MCZ R 24VDC 1NO TRAK Crossbar switch 24 V DC 6 A 1 maker 10 pc(s)
Description
Relay coupler. MCZ-SERIES, number of contacts: 1, normally-open, AgSnO, nominal control voltage: 24 V DC +25%/-30%, Continuous current: 6 A, spring-cage connection. The that allows clamping conductor cross-section is 0.5 ... 1.5 mm².
