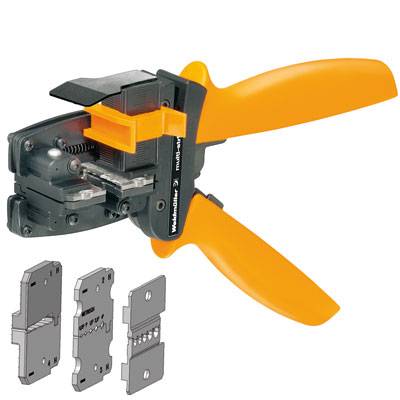

Weidmüller Multi-Stripax 0.75-4²SL 9203610000 Cable stripping pliers Incl. cable cutter 0.75 up to 4 mm² Suitable for br
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Stripping and cutting tool
- Multi-stripax 0.75-4 ²SL
Technical specifications
- Height: 85 mm
- max. cutting power Flat conductor: 10.2 mm x 4 mm
- max. cutting power Single-wired: 2.5 mm²
- max. cutting power fine-wired: 6 mm²
- Product type
Cable stripping pliers
- Suitable for
PVC-coated cables
- Working area (cross section)
0.75 up to 4 mm²
- Working area cross section (min.)
0.75 mm²
- Operating range (cross section) (max.)
4 mm²
- Length stop range
2 mm (min)
- Length stop (min.)
2 mm
- Length
40 mm
- Suitable for
Weidmüller
- Width
250 mm
- Weight
519.28 g
- Features
Incl. cable cutter
TRUE
519.28 kg/m
250 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259493 Weidmüller Multi-Stripax 0.75-4²SL 9203610000 Cable stripping pliers Incl. cable cutter 0.75 up to 4 mm² Suitable for br
User & Safety Instructions
User & Safety Instructions 259493 Weidmüller Multi-Stripax 0.75-4²SL 9203610000 Cable stripping pliers Incl. cable cutter 0.75 up to 4 mm² Suitable for br
Description
Stripping and cutting tool. fine-stranded and solid conductors with PVC insulation. For fine-stranded and solid conductors with special insulation materials. High stripping quality for industrial application (according to request from the aviation). Conductor insulation stripping knife enable the special special form and the conductor structures. Stripping length with stop can be set. High flexibility by interchangeable stripping units. High repeatability of the stripping results. No damage to the conductor. High stability for long life and high reliability. Integrated cutting function.
Hints
This text is machine translated.
