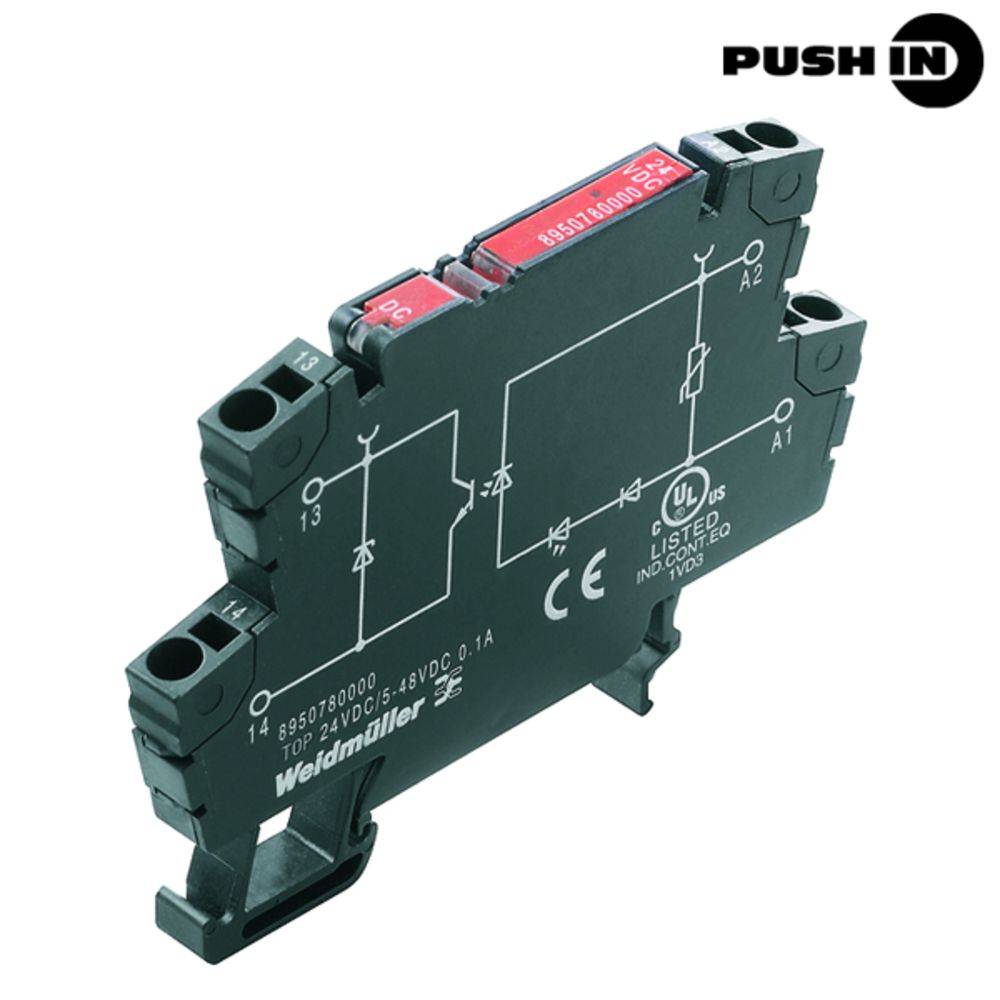

Weidmüller Optocoupler relay 1188830000-10 0.5 A Switching voltage (max.): 48 V DC 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Optocoupler relay
Control voltage (min.)
120 V AC
Control voltage (max.)
120 V AC
Switching voltage (max.)
48 V DC
Datasheet (PDF)
Highlights & Details
Solid state relays
- Industrial packaging, pack of 10
Technical specifications
- Storage temperature, max. 80 °C.
- Storage temperature, min.: -40 °C
- Status indicator: Green LED
- Switch-on delay < : 12.6 ms
- Switch-off delay < 20.8 ms
- Voltage drop at max. load < 1 V.
- Leakage current < 10 µA
- Short-circuit proof: No.
- Colour, black
- Rated voltage: 300 V
- Over voltage category III
- Creepage and air distance control side - load side: > 3 mm
- Surge voltage 4 kV (1.2/50 µs)
- Humidity: 5...95 % rel. humidity, Tu = 40 °C, no condensation
- MTTF: 2,500 Years
- On/off voltage 102 V/48 V AC
- Protective circuit: RC circuit, rectifier
- Load category: DC1
- Protection circuit, load side: Diode
- Max. Switching frequency (AC control voltage): 10 Hz
- Mounting rail TS 35
- Flammability class according to UL 94: V-0
- Pollution level: 2
- Electrical strength control side - load side: 1.2 kVeff / 1 min.
- Insulation stripping length rated connection: 10 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 2.5 mm²
- Conductor cross-section AWG, min. AWG 20
- Conductor cross-section AWG, max. AWG 14
- Conductor cross-section, single-wire, min.: 0.5 mm²
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, min. 0.5 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Conductor cross-section, fine strand, min. (AWG) 20 AWG
- Conductor cross-section, fine strand, max. (AWG): AWG 14
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min.: 0.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 1.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 1.5 mm²
- Blade size 0.6 x 3.5 mm
- Packaging type
Package
- Product type
Optocoupler relay
- Type
TOP 120VAC/48VDC 0.5A RC
- Connection
Push-in connector
- Control voltage (min.)
120 V AC
- Control voltage (max.)
120 V AC
- Control voltage range
120 - 120 V AC
- Control current (max.)
6.4 mA
- Switching voltage (min.)
5 V DC
- Switching voltage (max.)
48 V DC
- Current load (max.)
0.5 A
- Max. switching capacity
0.61 VA
- Output voltage (min.)
5 V DC
- Output voltage (max.)
48 V DC
- Max. output current
0.5 A
- Contact type
1 maker
- Min. temperature
-20 °C
- Max. temperature
+60 °C
IP20
- Width
6.1 mm
- Height
79.4 mm
- Depth
55 mm
- Weight
19.7 g
- Industrial packaging
Yes
- Permanent current (max.)
0.5 A
- Content
10 pc(s)
- Nominal control voltage
120 V AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 314411 Weidmüller Optocoupler relay 1188830000-10 0.5 A Switching voltage (max.): 48 V DC 10 pc(s)
User & Safety Instructions
User & Safety Instructions 314411 Weidmüller Optocoupler relay 1188830000-10 0.5 A Switching voltage (max.): 48 V DC 10 pc(s)
Description
Solid state relays. TERMOPTO, nominal control voltage: 120 V AC ±20%, nominal switching voltage: 5...48 V DC, nominal switching current 500 mA, push-in spring-cage connection. 5...48 V DC TERMOPTO solid-state relay 0.5 A output variants, with push-IN connection, in 6.1 mm width, closed design.
