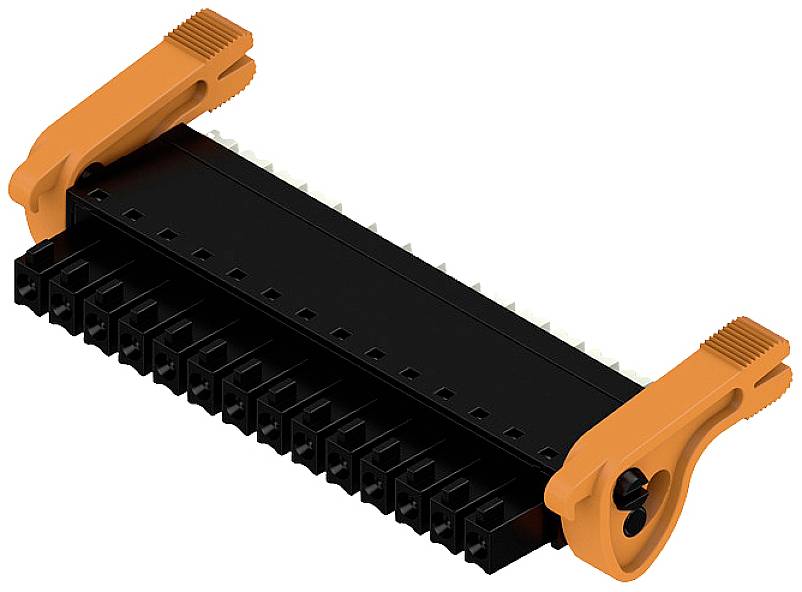

Weidmüller Pin housing cable BC/SC Total number of pins 14 Contact spacing: 3.81 mm 2442860000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing cable
No. of rows
1
Series
BC/SC
CS
3.81 mm
Total number of pins
14
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 6.97 / piece)
€ 348.74
plus VAT.
Highlights & Details
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 14
Technical specifications
- Product type
Pin housing cable
- No. of rows
1
- Connector system
wire-to-board
- Series
BC/SC
- Features
encodable
- CS
3.81 mm
- Pins per row
14
- Total number of pins
14
- Nominal current
17.50 A
- Nominal current - rounded value
17.5 A
- Content
50 pc(s)
- AWG max.
16
- AWG (min.)
26
- Stripping length (max.)
9 mm
- Connection
Pull spring
- Case material
PA GF
- Manufacturer part #
2442860000
- Factory colour
Black
- Industrial packaging
Yes
- Nominal voltage
320 V
- max. cross section
1.50 mm²
- Min. cross section
0.14 mm²
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
BCF 3.81/14/180LR SN BK BX
Documents & Downloads
Datasheet
Datasheet 1670630 Weidmüller Pin housing cable BC/SC Total number of pins 14 Contact spacing: 3.81 mm 2442860000 50 pc(s)
