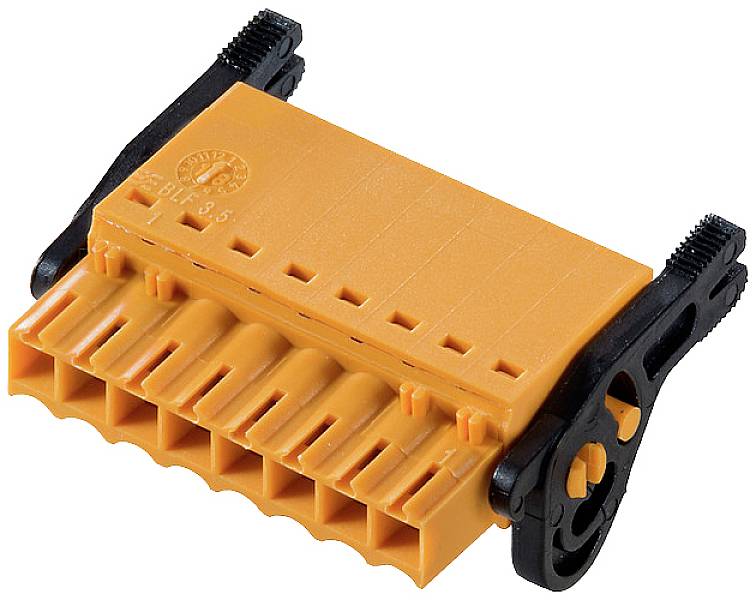

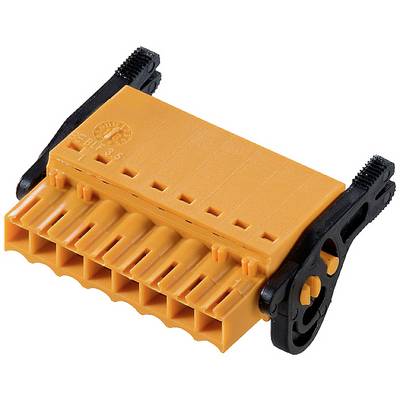

Weidmüller Pin housing cable BL/SL Total number of pins 24 Contact spacing: 3.50 mm 2459830000 18 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Content: 18 pc(s)
- No. of rows: 1
- Total number of pins: 24
Technical specifications
- Connector system
wire-to-board
- Series
BL/SL
- Features
encodable
- CS
3.50 mm
- Pins per row
24
- Total number of pins
24
- Nominal current
14.50 A
- Nominal current - rounded value
14.5 A
- Content
18 pc(s)
- Factory colour
Orange
- Industrial packaging
Yes
- Connection
Pull spring
- Connector contact surface
Tin plated
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
2459830000
- Type
BLF 3.50/24/180LR SN OR BX
- Nominal voltage
320 V
- AWG max.
16
- AWG (min.)
28
- max. cross section
1.50 mm²
- Stripping length (max.)
8 mm
- No. of rows
1
- Contact material
Copper alloy
- Min. cross section
0.25 mm²
- Case material
PA GF
- RoHS-compliant
Yes
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Product type
Pin housing cable
