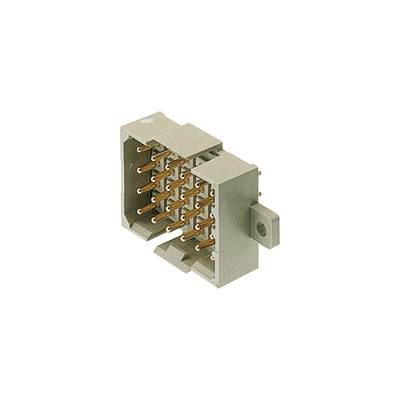

Weidmüller Pin housing PCB RSV Total number of pins 36 Contact spacing: 5 mm 1446900000 10 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, straight
No. of rows
4
Series
RSV
CS
5 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 10 pc(s)
- No. of rows: 4
- Total number of pins: 36
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, straight
- No. of rows
4
- Connector system
wire-to-board
- Series
RSV
- CS
5 mm
- Pins per row
9
- Total number of pins
36
- Width
57.5 mm
- Pin Ø
0.97 mm
- Pin shape
Circular
- Nominal current
14 A
- Nominal current - rounded value
14 A
- Content
10 pc(s)
- Dim
(L x W x H) 15.0 x 57.5 x 28.8 mm
- Connection
Print
- Case material
Thermoplastic
- Manufacturer part #
1446900000
- Factory colour
Grey
- Industrial packaging
Yes
- Insulation material
Thermoplastic
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
500 V
- Height
28.8 mm
- Length
15.0 mm
- RoHS-compliant
Yes
IP20 (when connected)
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+100 °C
- Type
RSV1,6 LSF36 GR 3,2 SN
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 321815 Weidmüller Pin housing PCB RSV Total number of pins 36 Contact spacing: 5 mm 1446900000 10 pc(s)
User & Safety Instructions
User & Safety Instructions 321815 Weidmüller Pin housing PCB RSV Total number of pins 36 Contact spacing: 5 mm 1446900000 10 pc(s)
Description
PCB connector. Multi-pin connector, Flange, solder, 5.00 mm, 36 Pins, 180°, solder pin length: 3.2 mm, tinned, pebble gray, Box. Square connector with solder pin and lotbuchsenkontakte for PCB applications. High packing density by several rows and the use of crimp contacts in the counterpart. The connectors are encoded and with the counterpiece lockable. Supplied in a carton. 500 V (IEC) / 300 V (UL), 14 A (IEC) / 10 A (UL),.
This text is machine translated.
