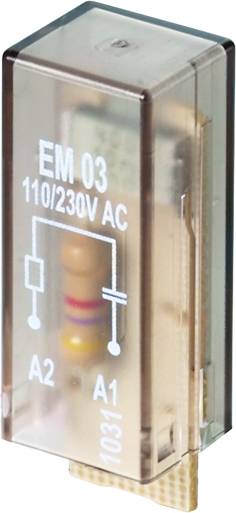

Weidmüller Plug-in module + RC circuit, w/o LED RIM-I 3 110/230VAC RC Piece 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in module
Max. operating voltage
230 V DC/AC
Case colour
Transparent
Features
+ RC circuit
w/o LED
Datasheet (PDF)
Highlights & Details
Plug-in module RIM-I3
- Industrial packaging, pack of 10
Our service for you
Technical specifications
- Storage temperature: -40 °C…70 °C
- Conductor connection technology: Plug connection
- RC filter 4.7 kΩ / 10 nF
- Packaging type
Piece
- Product type
Plug-in module
- Features
+ RC circuit
w/o LED
- Type
RIM-I 3 110/230VAC RC
- Content
10 pc(s)
- Min. operating voltage
110 V DC/AC
- Max. operating voltage
230 V DC/AC
- Operating voltage
110 - 230 V DC/AC
- Case colour
Transparent
- Compatible with
Weidmüller
- Compatible with series
Weidmüller RIDERS RCI series
Weidmüller RIDERS RCM series
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
11.4 mm
- Height
10.5 mm
- Length
32.1 mm
- Dim
(L x W x H) 32.1 x 11.4 x 10.5 mm
- Industrial packaging
Yes
- Weight
1.9 g
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391781 Weidmüller Plug-in module + RC circuit, w/o LED RIM-I 3 110/230VAC RC Piece 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391781 Weidmüller Plug-in module + RC circuit, w/o LED RIM-I 3 110/230VAC RC Piece 10 pc(s)
Description
The plug-in RC-element for the RIDERS RCI series and RCM relay socket.
