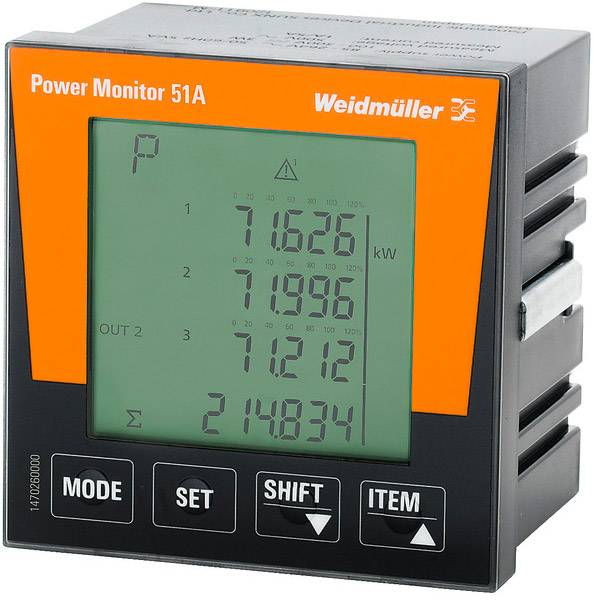

Weidmüller POWER MONITOR 51A Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Operating temperature: -25 °C - +55 °C
- Storage temperature: -25 °C - +70 °C
- Number of digital inputs: 2
- Number of digital outputs: 2
- Protocol: Modbus RTU
- Measurement accuracy at voltage: 0.5 %
- Measurement accuracy at current: 0.5 %
- Nominal current: 1 / 5 A.
- Product type
Digital rack-mount meter
- Reading type
AC voltage
Amperage
- Reading range (min.)
0 V
- Type
POWER MONITOR 51A
- Reading range (max.)
500 V
- Display technology
Graphics
- Dim
(L x W x H) 68 x 96 x 96 mm
- Weight
386 g
- Max. operating voltage
264 V AC
300 V DC
- Min. operating voltage
85 V AC
100 V DC
- Width
96 mm
- Height
96 mm
- Length
68 mm
- Interfaces
RS485
USB
- Interfaces
RS485
USB
96
96 mm
68 mm
IP51
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1950332 Weidmüller POWER MONITOR 51A Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 1950332 Weidmüller POWER MONITOR 51A Digital rack-mount meter
