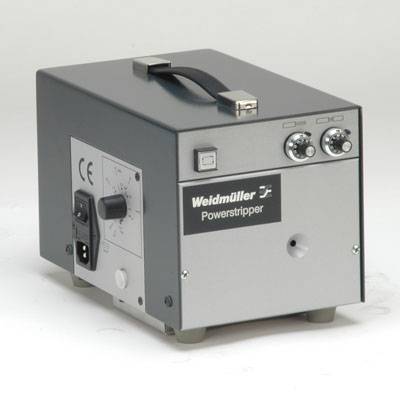

Weidmüller Powerstripper 9028510000 Electrician Automatic stripper 0.05 up to 6 mm² 10 up to 30 Suitable for brand (plie
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Stripping and cutting tool
- Power stripper 6.0
Technical specifications
- Height 190 mm
- Electrical connection 100-240 V / 50/65 Hz
- Cable length: 3-20 mm
- Drive: Electrical
- stripping range + crimp range: 0.05 - 6.0 mm² (~AWG 30-10)
- Connection values: 46 VA
- Product type
Automatic stripper
- Suitable for
DIN VDE 0295/5 cables
- Working area (cross section)
0.05 up to 6 mm²
- Working area cross section (min.)
0.05 mm²
- Operating range (cross section) (max.)
6 mm²
- Operating range (AWG diameter)
10 up to 30
- Range of use
Electrician
- Operating range (AWG cross section) (min.)
30
- Operating range (AWG cross section) (max.)
10 awg
- Length stop range
3 up to 20 mm
- Length stop (min.)
3 mm
- Length stop (max.)
20 mm
- Length
295 mm
- Suitable for
Weidmüller
- Width
190 mm
- Weight
9.64 kg
190
Skin
190 mm
295 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259346 Weidmüller Powerstripper 9028510000 Electrician Automatic stripper 0.05 up to 6 mm² 10 up to 30 Suitable for brand (plie
User & Safety Instructions
User & Safety Instructions 259346 Weidmüller Powerstripper 9028510000 Electrician Automatic stripper 0.05 up to 6 mm² 10 up to 30 Suitable for brand (plie
Description
Stripping and cutting tool. 0.14 - 6.0 mm² (AWG 26-10) For automatic stripping from single conductors. Stripping of flexible conductors according to DIN VDE 0295, KL: 5. Wire stripper, the isolation remains on the tail end of part. No tool change. Quick and easy setting option to the corresponding conductor cross-section. Stripping length of 3 to 20 mm. Min. Conductor length 22 mm plus stripping length. Electrical actuation
Hints
This text is machine translated.
