Weidmüller PS_ZQV Test tip set 1121740000 4 mm socket Black, Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Test Plug Set PS_ZQV
- Nominal current 20 A
- Socket Ø 4 mm;Black, Red
Technical specifications
- Product type
Test tip set
- Connection
4 mm socket
- Nominal voltage
1000 V
- Factory colour
Black
Red
- Jack diameter
4 mm
- Length
94 mm
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Width
20 mm
- Height
110 mm
- Shaft length
94 mm
- Plug features
Scoop-proof
1000 V
Plug-in connection
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200687 Weidmüller PS_ZQV Test tip set 1121740000 4 mm socket Black, Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 200687 Weidmüller PS_ZQV Test tip set 1121740000 4 mm socket Black, Red 1 pc(s)
Description
Test connector for through terminal blocks with a grid of 3.5 mm to 8 mm. Weidmüller offers the user of terminals with a wide range of in all the tasks of a suitable solution using standard functions also allows.
This text is machine translated.
This text is machine translated.
Scope of delivery

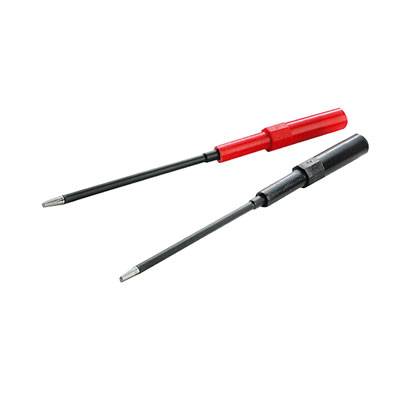

- 1x probe tip red, 1 x black probe tip.
