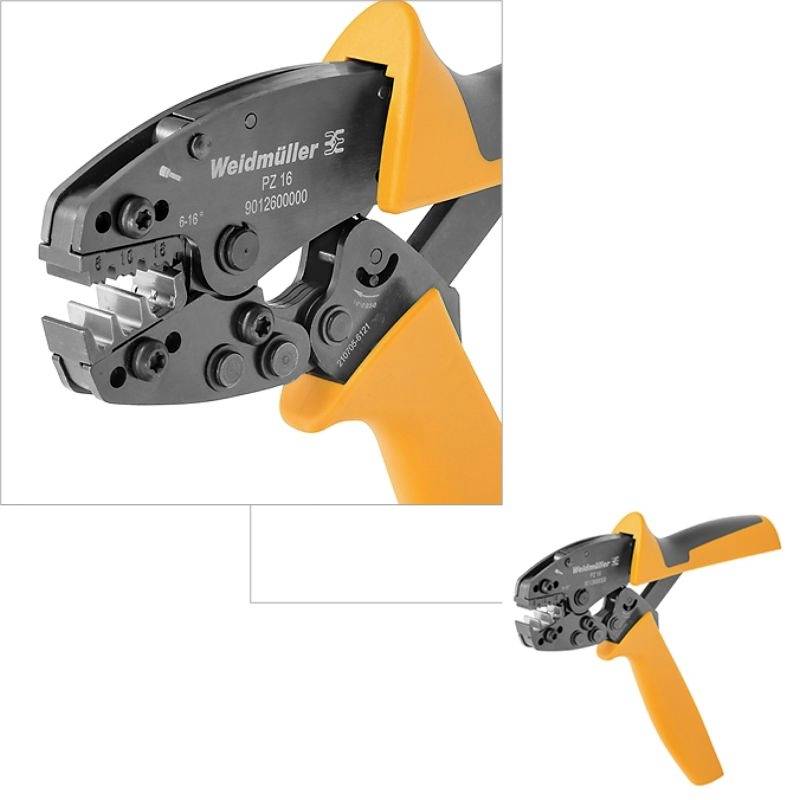

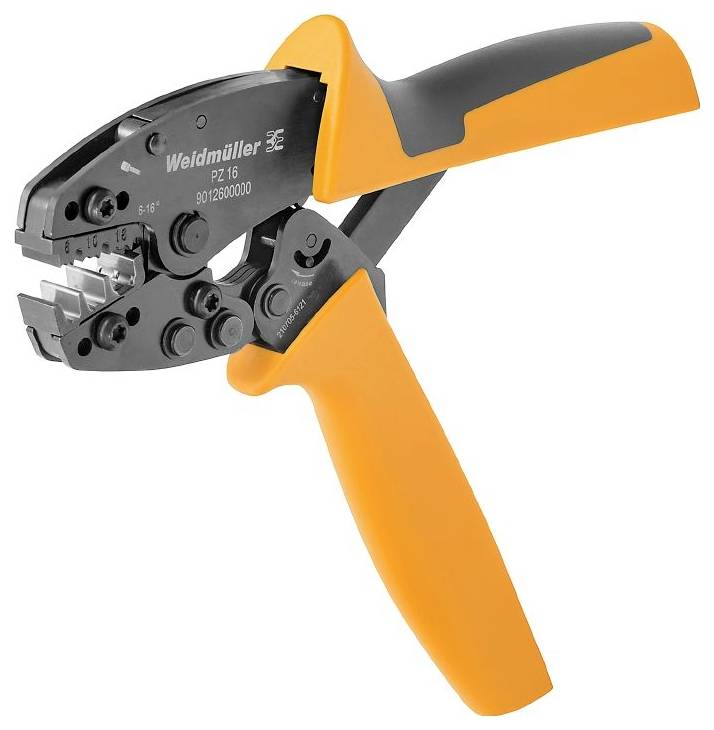

Weidmüller PZ 16 9012600000 Crimper Ferrules 6 up to 16 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PZ16 crimping pliers
- For wire-end sleeves, 6mm², 16mm², Indent-Crimp
Technical specifications
- Crimp type/profile: Indent crimp
- Product type
Crimper
- Manufacturer part #
9012600000
- Range of uses
Ferrules
- Crimp area
6 up to 16 mm²
- Crimp area AWG
6 up to 10 awg
- Crimp area (min.)
6 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
6 awg
- Length
200 mm
- Width
200 mm
- Height
220 mm
- Weight
419.2 g
200 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259129 Weidmüller PZ 16 9012600000 Crimper Ferrules 6 up to 16 mm²
User & Safety Instructions
User & Safety Instructions 259129 Weidmüller PZ 16 9012600000 Crimper Ferrules 6 up to 16 mm²
Description

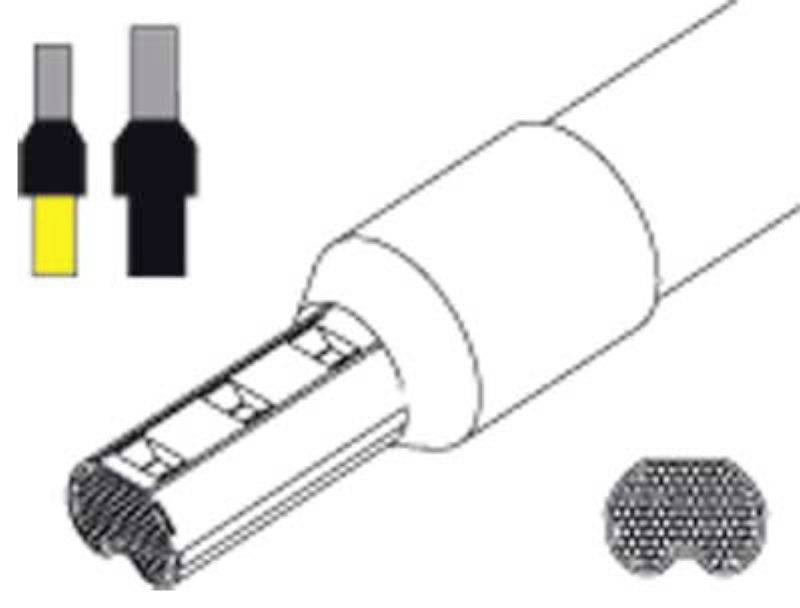

Crimping pliers for ferrules with and without plastic sleeves, Indent-Crimp, Working range 6 - 16 mm² (AWG 10 - 6). Interlock guarantees proper contact. Unlock mechanism (in case of incorrect operation).
Hints
This text is machine translated.
