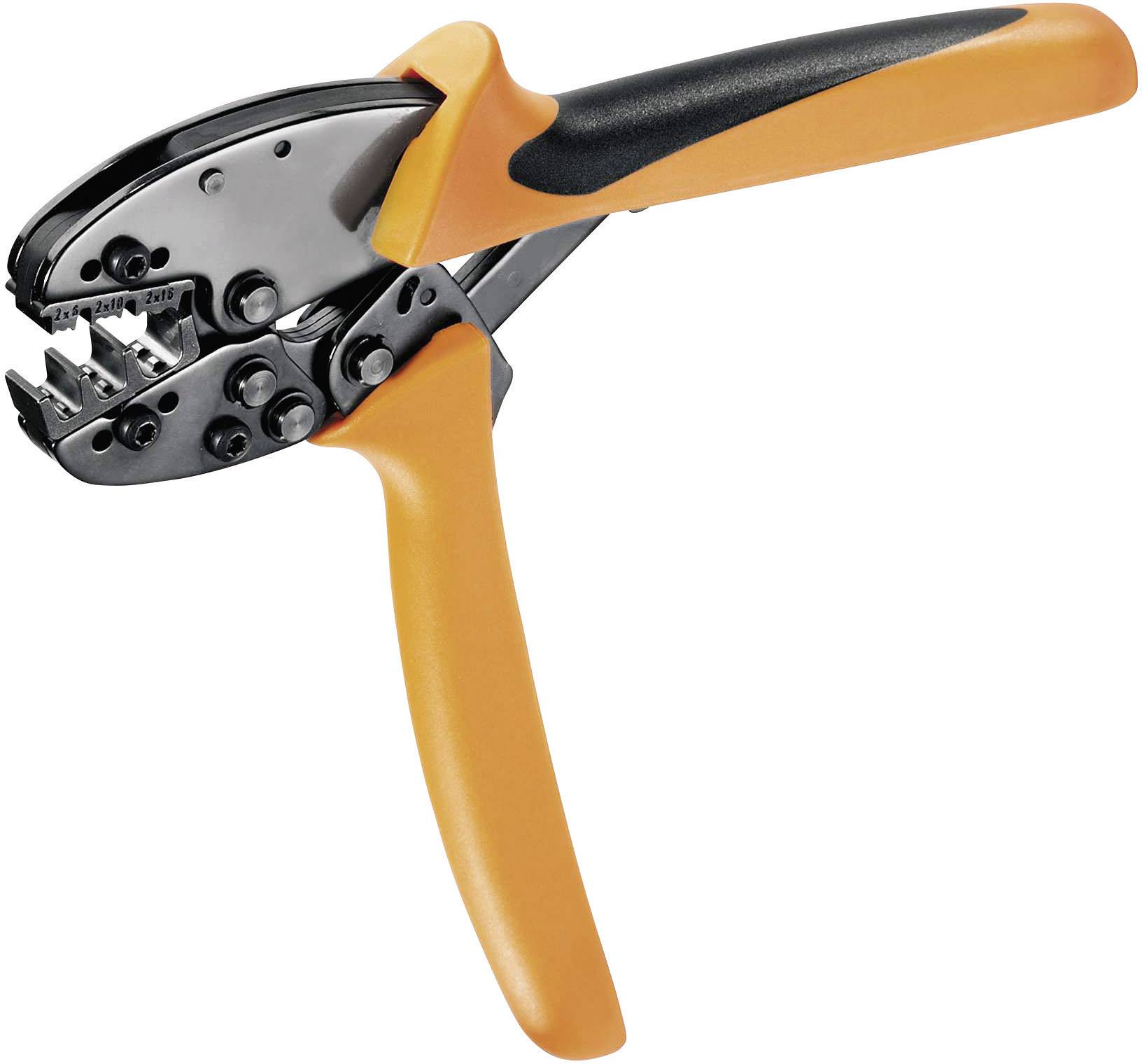

Weidmüller PZ ZH 16 9013600000 Crimper Twin ferrules 6 up to 16 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Crimp type/profile: Indent crimp
- Product type
Crimper
- Manufacturer part #
9013600000
- Range of uses
Twin ferrules
- Crimp area
6 up to 16 mm²
- Crimp area AWG
6 up to 10 awg
- Crimp area (min.)
6 mm²
- Crimp area (max.)
16 mm²
- Crimp area AWG (min.)
10 awg
- Crimp area AWG (max.)
6 awg
- Length
250 mm
- Width
250 mm
- Height
283 mm
- Weight
674.78 g
250 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259139 Weidmüller PZ ZH 16 9013600000 Crimper Twin ferrules 6 up to 16 mm²
User & Safety Instructions
User & Safety Instructions 259139 Weidmüller PZ ZH 16 9013600000 Crimper Twin ferrules 6 up to 16 mm²
Description
Crimping tool for cable end sleeves. 6 mm², 16 mm², Indent-Crimp. Crimper for ferrules with and without plastic sleeves. Interlock guarantees proper contact. Unlock mechanism (in case of incorrect operation).
Scope of delivery
- 1 pcs. PZ ZH 16
Hints
This text is machine translated.
