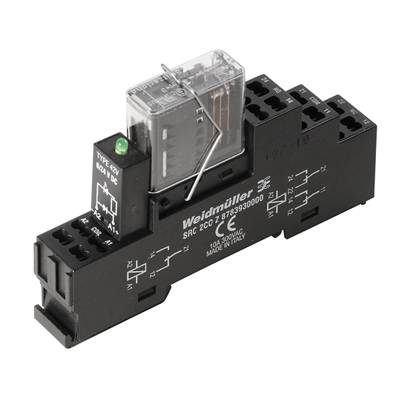

Weidmüller RCIKITZ 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Relay component
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
250 V DC
Datasheet (PDF)
Highlights & Details
Relay coupler
- Industrial packaging, pack of 10
Technical specifications
- Status indicator: Green LED
- Switch-on delay: ≤ 12 ms
- Switch-off delay: ≤ 6 ms
- min Switching capacity: 1 mA at 24 V, 10 mA at 10 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 1.5 mm²
- Blade size 0.4 x 2.5 mm
- Packaging type
Package
- Product type
Relay component
- Type
RCIKITZ 24VDC 2CO LD/FG
- Connection
Pull spring
- Factory colour
Black
- Max. pick-up voltage
18 V DC
- Response time
12 ms
- Fall time
6 ms
- Contact type
2 change-overs
- Contact material
AgCuNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Durability
50 x 10 6 circuits
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
720 Ω
- Features
+ LED
w/o test button
w/o display
IP20
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Length
63.8 mm
- Width
16 mm
- Height
98.1 mm
- Dim
(L x W x H) 63.8 x 16 x 98.1 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
67 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 314746 Weidmüller RCIKITZ 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs
User & Safety Instructions
User & Safety Instructions 314746 Weidmüller RCIKITZ 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs
Description
Relay coupler. RIDERSERIES, number of contacts: 2, Co, AgCuNi, nominal control voltage: 24V DC, Continuous current: 6 A, spring-cage connection. Coupling relays with positively driven contacts for monitoring signals in safety circuits. With a level of diagnostic coverage of 99 %, relays with positively driven contacts are one of many proven components in security technology. By locking the contacts, you can ensure synchronous switching states on both contacts. This ensures that in the event of an error (for example an overload when soldering the NO contact), the signalling contact retains the same switching state.
