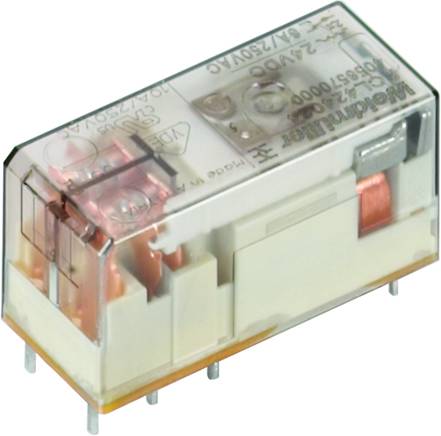

Weidmüller RCL114730 Plug-in relay 230 V AC 12 A 1 change-over 20 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Highlights & Details
Relay, Series RCL 114
Our service for you
Technical specifications
- Product type
Plug-in relay
- Type
RCL114730
- Coil nominal voltage
230 V AC
- Min. pick-up voltage
172.5 V AC
- Control mode
monostable, 1 coil
- Resistance (coil)
32500 Ω
- Contact type
1 change-over
- Contact material
AgNi 90/10
- Switching voltage (max.)
400 V AC
- Switching current (max.)
12 A
- Max. switching capacity
3000 VA
288 W
- Creepage distance (coil/clips)
10 mm
- Connection
Jack connector
- Fall time
6 ms
- Durability
10 x 106 circuits
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Weight
14.5 g
- Factory colour
Transparent
- Width
12.7 mm
- Height
29 mm
- Depth
15.7 mm
- Dim
(W x H x D) 12.7 x 29 x 15.7 mm
- Industrial packaging
Yes
- Content
20 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391618 Weidmüller RCL114730 Plug-in relay 230 V AC 12 A 1 change-over 20 pc(s)
User & Safety Instructions
User & Safety Instructions 391618 Weidmüller RCL114730 Plug-in relay 230 V AC 12 A 1 change-over 20 pc(s)
Description
Relays. RIDERSERIES, number of contacts: 1, Co, AgNi 90/10, nominal control voltage 230 V AC, continuous current 12 A, plug connection
