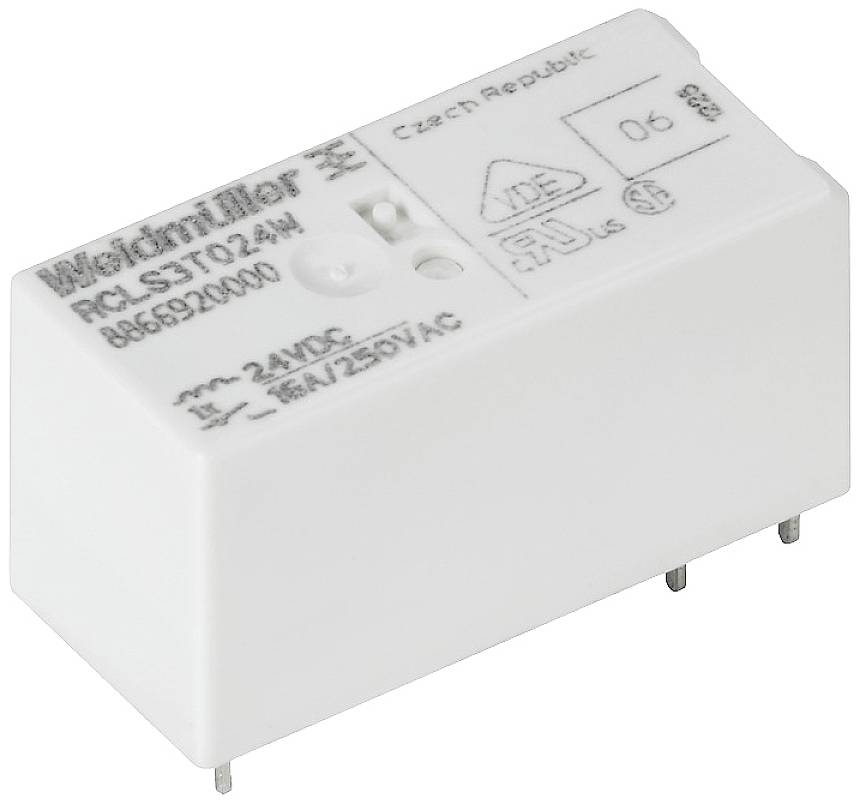

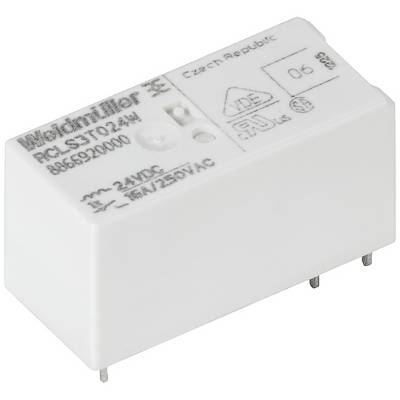

Weidmüller RCL314024W Plug-in relay 24 V DC 16 A 1 change-over 20 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in relay
Coil nominal voltage
24 V DC
Contact type
1 change-over
Switching voltage (max.)
440 V AC
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Plug-in relay
- Type
RCL314024W
- Coil nominal voltage
24 V DC
- Min. pick-up voltage
16.8 V DC
- Resistance (coil)
1440 Ω
- Contact type
1 change-over
- Contact material
AgNi 90/10
- Switching voltage (max.)
440 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
384 W
- Creepage distance (coil/clips)
10 mm
- Connection
Jack connector
- Fall time
4 ms
- Features
w/o LED
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Weight
14 g
- Factory colour
White
- Width
12.7 mm
- Height
29 mm
- Depth
15.7 mm
- Dim
(W x H x D) 12.7 x 29 x 15.7 mm
- Industrial packaging
Yes
- Content
20 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
