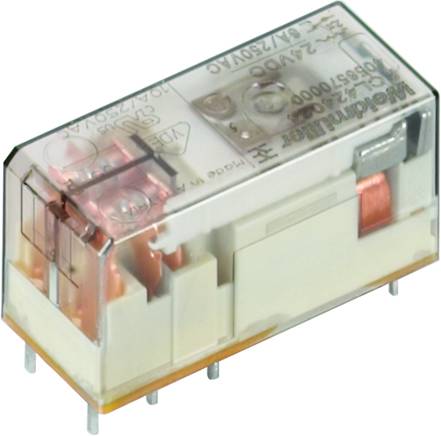

Weidmüller RCLS3L024 Plug-in relay 24 V DC 16 A 1 maker 20 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
24 V DC
Control mode
monostable, 1 coil
Contact type
1 maker
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Technical specifications
- Product type
Plug-in relay
- Type
RCLS3L024
- Coil nominal voltage
24 V DC
- Min. pick-up voltage
16.8 V DC
- Control mode
monostable, 1 coil
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
384 W
- Creepage distance (coil/clips)
10 mm
- Connection
Jack connector
- Fall time
6 ms
- Durability
10 x 106 circuits
IP20
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Weight
14.2 g
- Factory colour
White
- Width
12.7 mm
- Height
29 mm
- Depth
15.7 mm
- Dim
(W x H x D) 12.7 x 29 x 15.7 mm
- Industrial packaging
Yes
- Content
20 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 391740 Weidmüller RCLS3L024 Plug-in relay 24 V DC 16 A 1 maker 20 pc(s)
User & Safety Instructions
User & Safety Instructions 391740 Weidmüller RCLS3L024 Plug-in relay 24 V DC 16 A 1 maker 20 pc(s)
Description
Relays. RIDERSERIES, number of contacts: 1, normally-open, AgSnO2, nominal control voltage: 24V DC, continuous current 16 A, plug connection
