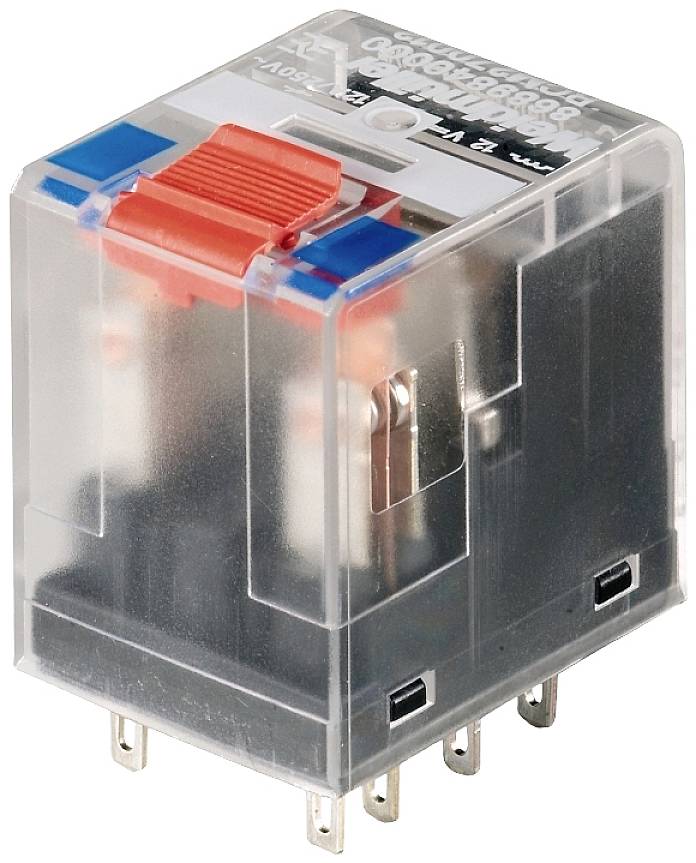

Weidmüller RCM330730 Plug-in relay 230 V AC 10 A 3 change-overs 10 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Contact type
3 change-overs
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Technical specifications
- Relay small structural dimensions for switching, reinforce and duplication of digital signals of less electrical loads.
- Packaging type
Piece
- Product type
Plug-in relay
- Type
RCM330730
- Coil nominal voltage
230 V AC
- Min. pick-up voltage
184 V AC
- Resistance (coil)
19465 Ω
- Contact type
3 change-overs
- Contact material
AgNi
- Switching voltage (max.)
400 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
240 W
- Creepage distance (coil/clips)
4 mm
- Connection
Jack connector
- Fall time
10 ms
- Durability
20 x 106 circuits
- Features
w/o LED
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Weight
27.6 g
- Factory colour
Transparent
- Width
22.5 mm
- Height
28 mm
- Depth
29 mm
- Dim
(W x H x D) 22.5 x 28 x 29 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- Permanent current (max.)
10 A
- Operating voltage
230 V AC
- Switch-on current
20 A
- UKCA
not relevant
