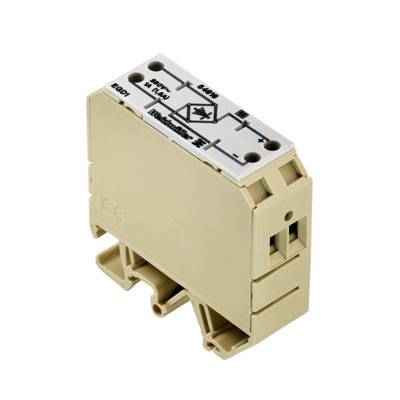

Weidmüller Rectifier 10 pc(s) EGD1 EG2 4D 5-250VAC/1A 5 - 250 V AC IP20
EAN:
Part number:
Item no:
Product type
Rectifier
Connection
Screw terminal
Min. operating voltage
5 V AC
Max. operating voltage
250 V AC
Type
EGD1 EG2 4D 5-250VAC/1A
Datasheet (PDF)
Highlights & Details
Rectifier
- Industrial packaging, pack of 10
Technical specifications
- Storage temperature: -45 °C to +100 °C.
- Clamping range, rated connection 4 mm²
- Clamping range 0.5 mm² - 4 mm²
- Conductor cross-section AWG: AWG 12
- Conductor cross-section, fine strand 0.5 mm² - 4 mm²
- Nominal current AC 1.5 A
- Product type
Rectifier
- Type
EGD1 EG2 4D 5-250VAC/1A
- Connection
Screw terminal
- Min. operating voltage
5 V AC
- Max. operating voltage
250 V AC
- Operating voltage
5 - 250 V AC
IP20
- Min. temperature
-30 °C
- Max. temperature
+40 °C
- Width
20 mm
- Height
58 mm
- Dim
(W x H) 20 mm x 58 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 279059 Weidmüller Rectifier 10 pc(s) EGD1 EG2 4D 5-250VAC/1A 5 - 250 V AC IP20
User & Safety Instructions
User & Safety Instructions 279059 Weidmüller Rectifier 10 pc(s) EGD1 EG2 4D 5-250VAC/1A 5 - 250 V AC IP20
Description
Rectifier circuit. EGD rectifier blocks are can be snapped onto mounting rail. The bridge circuit is made up of 4 individual diodes with a wide input voltage range from 5 V to 240 V AC. The industrial rectifier circuits are input/output side with varistors against overvoltage protected.
