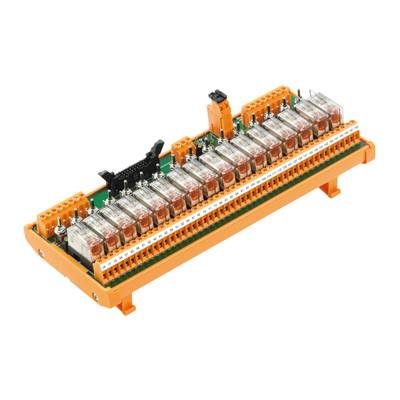

Weidmüller Relay card 1 pc(s) RSM-16 PLC C 1CO S 1 change-over 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 change-over
Connection
Screws
Type
RSM-16 PLC C 1CO S
Datasheet (PDF)
Technical specifications
- Product type
Relay card
- Type
RSM-16 PLC C 1CO S
- Operating voltage
24 V DC
- Channels
16
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
2.5 A
- Connection
Screws
- Content
1 pc(s)
- Weight
455 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
111 mm
- Width
109 mm
- Height
85 mm
- Dim
(L x W x H) 111 x 109 x 85 mm
- RoHS-compliant
Yes
DIN rail (top hat rail) 35 mm
111
109 mm
85 mm
250 V
20
Screw connection
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200793 Weidmüller Relay card 1 pc(s) RSM-16 PLC C 1CO S 1 change-over 24 V DC
User & Safety Instructions
User & Safety Instructions 200793 Weidmüller Relay card 1 pc(s) RSM-16 PLC C 1CO S 1 change-over 24 V DC
Description
Switching relay. Interface, RSM PLC, 16, RSS, screw connection. Digital output interface per relay for the electrical signal transmission between the PLC and the field. Electrical insulation by use of a pluggable relay. Integrated LED status indicator.
