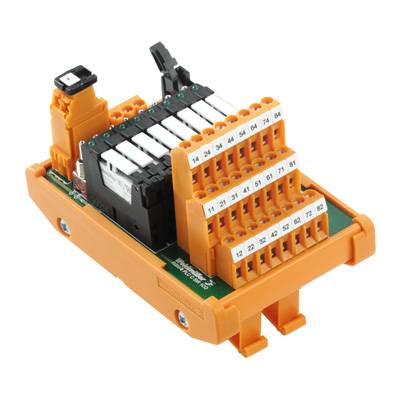

Weidmüller Relay card 1 pc(s) RSM-8 PLC C 1CO Z 1 change-over 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 change-over
Connection
Pull spring
Type
RSM-8 PLC C 1CO Z
Datasheet (PDF)
Highlights & Details
Switching relay RSM (PLC)
Our service for you
Technical specifications
- Product type
Relay card
- Type
RSM-8 PLC C 1CO Z
- Operating voltage
24 V DC
- Channels
8
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
2.5 A
- Connection
Pull spring
- Content
1 pc(s)
- Weight
115 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
75 mm
- Width
109 mm
- Height
80 mm
- Dim
(L x W x H) 75 x 109 x 80 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 200788 Weidmüller Relay card 1 pc(s) RSM-8 PLC C 1CO Z 1 change-over 24 V DC
User & Safety Instructions
User & Safety Instructions 200788 Weidmüller Relay card 1 pc(s) RSM-8 PLC C 1CO Z 1 change-over 24 V DC
Description
Switching relay. Interface, RSM PLC, 8, RSS, spring-cage connection. Digital output interface per relay for the electrical signal transmission between the PLC and the field. Electrical insulation by use of a pluggable relay. Integrated LED status indicator.
