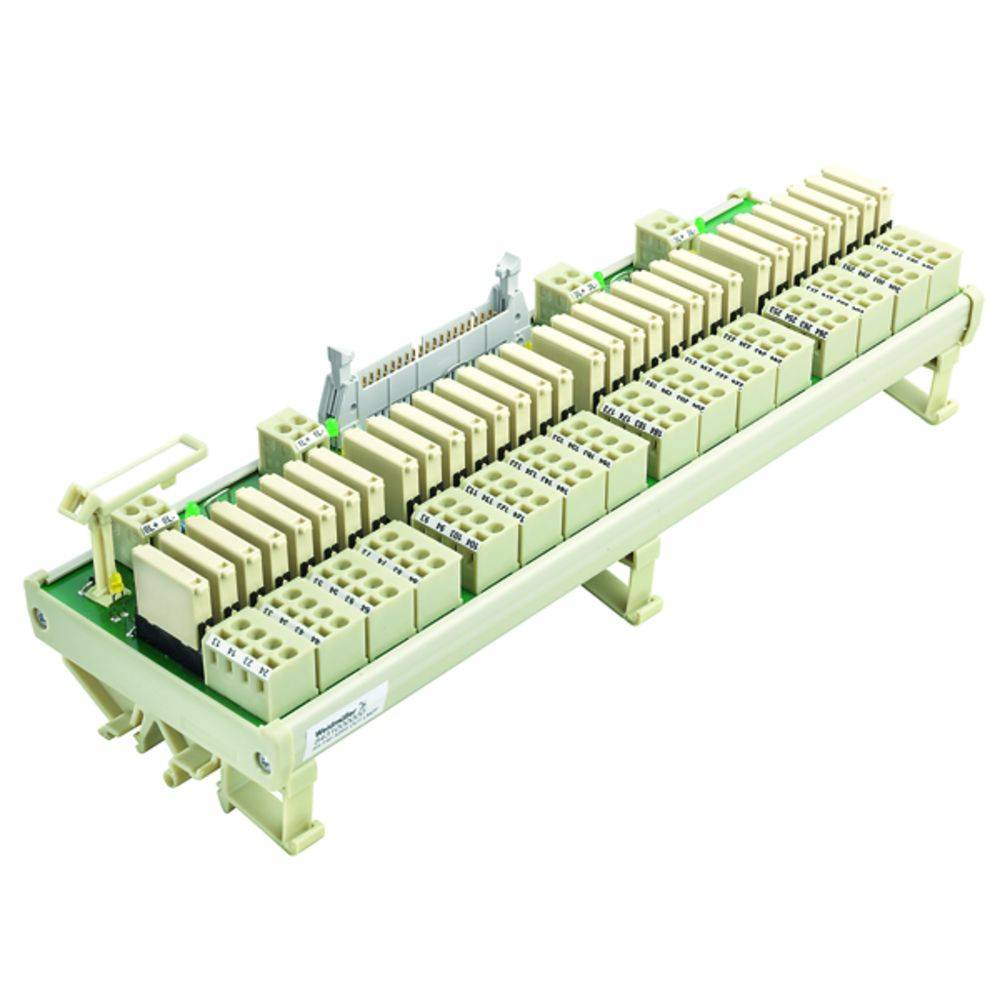

Weidmüller Relay card equipped 1 pc(s) RS F40 32RS OUT LMZF 1 maker 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 maker
Connection
Screw terminal
Features
equipped
Datasheet (PDF)
Highlights & Details
Plc communication module
Our service for you
Technical specifications
- Product type
Relay card
- Features
equipped
- Type
RS F40 32RS OUT LMZF
- Operating voltage
24 V DC
- Channels
32
- Contact type
1 maker
- Switching current (max.)
3 A
- Connection
Screw terminal
- Content
1 pc(s)
- Weight
517 g
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Length
263 mm
- Width
87 mm
- Height
73 mm
- Dim
(L x W x H) 263 x 87 x 73 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 258010 Weidmüller Relay card equipped 1 pc(s) RS F40 32RS OUT LMZF 1 maker 24 V DC
Description
Plc communication module. FUJITSU NYP-24 WK, spring-cage connection. Interface element RS F40 for 32 signals caused by a relay enable by the PLC with the sensors and actuators incoming signals to isolate field. After Bytes grouped signals. Extremely compact modules in RS-profile 45 for mounting on standard mounting rail TS 35.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Finish-loaded with 32 relay (FUJITSU type NYP-24 WK).
