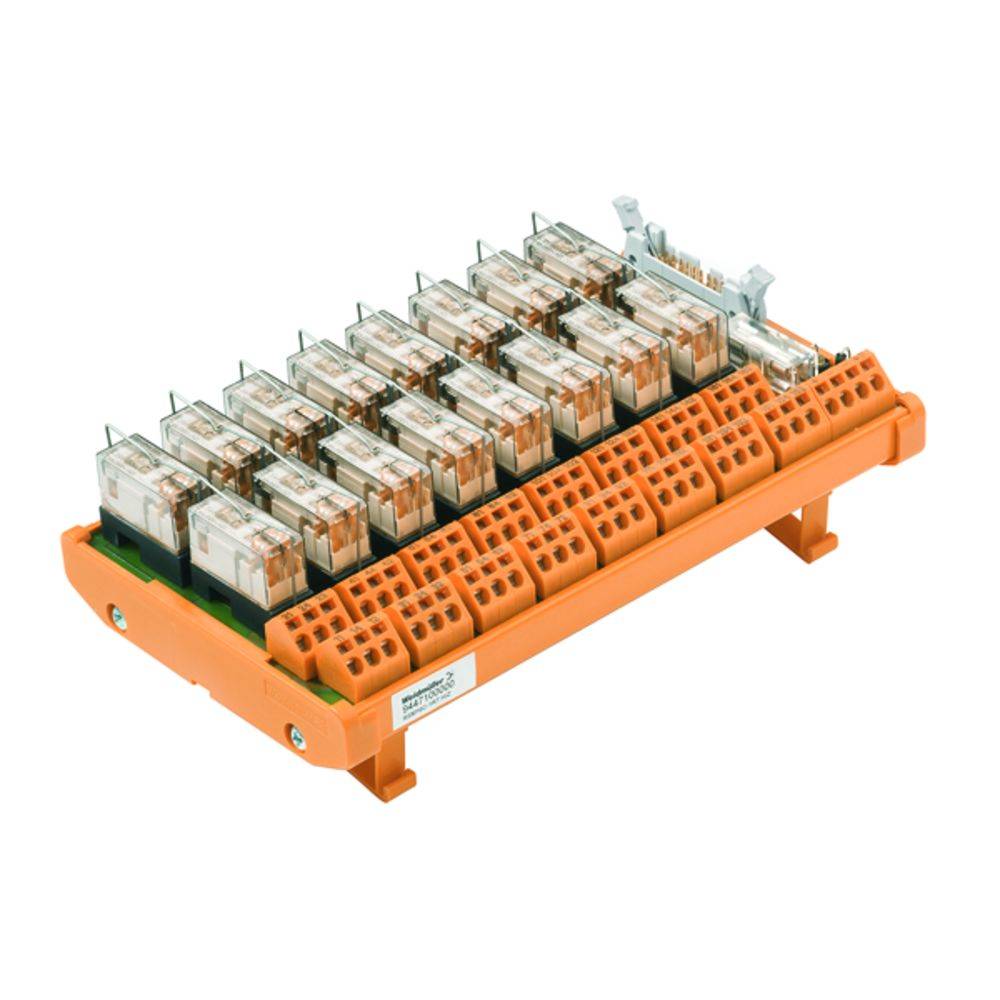

Weidmüller Relay card equipped 1 pc(s) RSM-16 C 1CO Z 1 change-over 250 V AC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
250 V AC
Contact type
1 change-over
Connection
Pull spring
Features
equipped
Datasheet (PDF)
Technical specifications
- Product type
Relay card
- Features
equipped
- Type
RSM-16 C 1CO Z
- Operating voltage
250 V AC
- Channels
16
- Contact type
1 change-over
- Switching voltage (max.)
24 V DC
- Switching current (max.)
5 A
- Connection
Pull spring
- Content
1 pc(s)
- Weight
642 g
- Max. temperature
+40 °C
- Min. temperature
-25 °C
- Length
185 mm
- Width
109 mm
- Height
68 mm
- Dim
(L x W x H) 185 x 109 x 68 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259651 Weidmüller Relay card equipped 1 pc(s) RSM-16 C 1CO Z 1 change-over 250 V AC
User & Safety Instructions
User & Safety Instructions 259651 Weidmüller Relay card equipped 1 pc(s) RSM-16 C 1CO Z 1 change-over 250 V AC
Description
Transfer module. Interface, RSM, 16 compact, RCL, spring-cage connection. Digital output interface per relay for the electrical signal transmission between the PLC and the field. Electrical insulation by use of a pluggable relay. Integrated LED status indicator.
