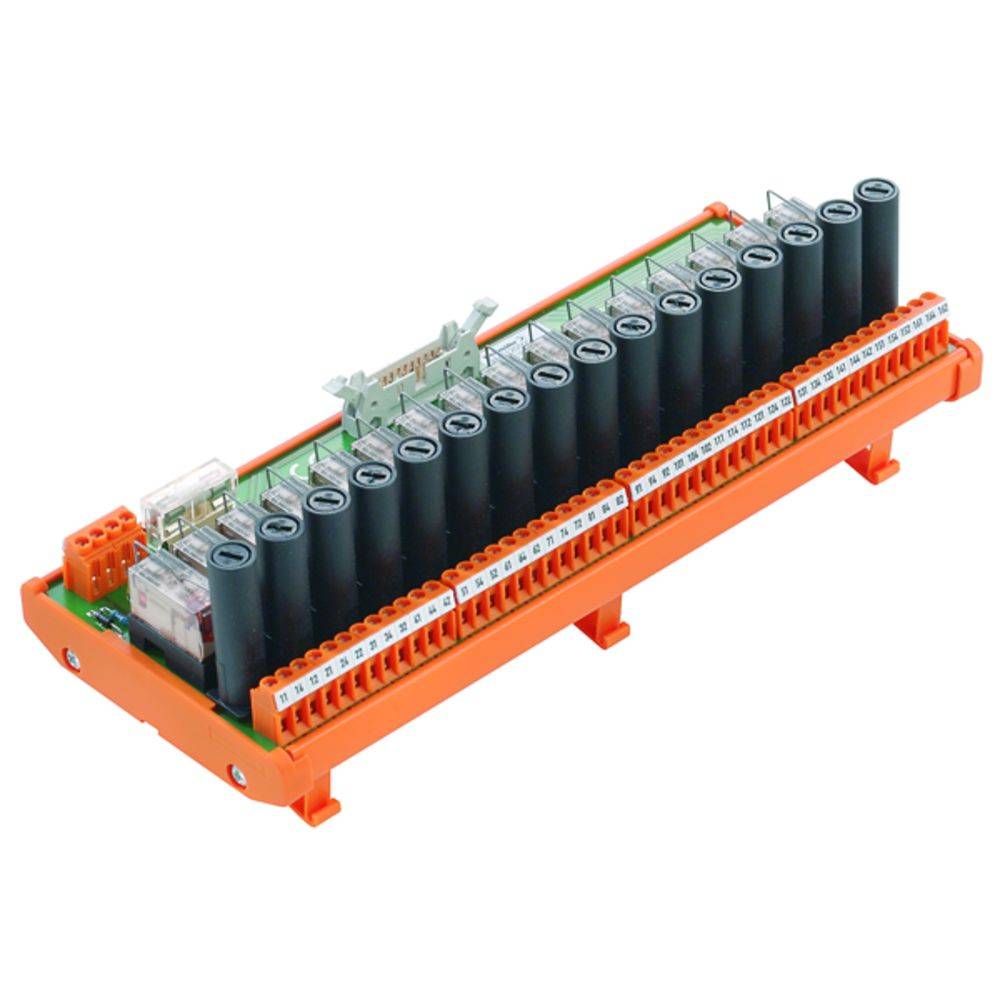

Weidmüller Relay card equipped 1 pc(s) RSM-16 FUS 1CO S 1 change-over 250 V AC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
250 V AC
Contact type
1 change-over
Connection
Screws
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Relay card
- Features
equipped
- Type
RSM-16 FUS 1CO S
- Operating voltage
250 V AC
- Channels
16
- Contact type
1 change-over
- Switching voltage (max.)
24 V DC
- Switching current (max.)
5 A
- Connection
Screws
- Content
1 pc(s)
- Weight
1064 g
- Max. temperature
+40 °C
- Min. temperature
-25 °C
- Length
261 mm
- Width
109 mm
- Height
75 mm
- Dim
(L x W x H) 261 x 109 x 75 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259622 Weidmüller Relay card equipped 1 pc(s) RSM-16 FUS 1CO S 1 change-over 250 V AC Piece
User & Safety Instructions
User & Safety Instructions 259622 Weidmüller Relay card equipped 1 pc(s) RSM-16 FUS 1CO S 1 change-over 250 V AC Piece
Description
Transfer module. Interface, RSM, 16 mit fuse, RCL, screw connection. Digital output interface per relay for the electrical signal transmission between the PLC and the field. Electrical insulation by use of a pluggable relay. Integrated LED status indicator.
