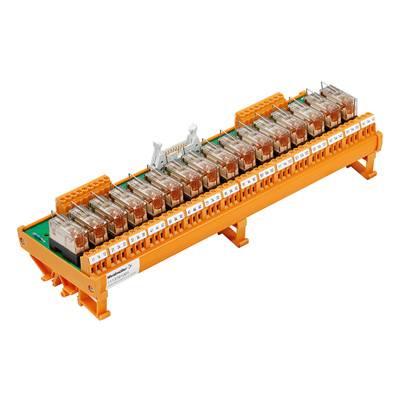

Weidmüller Relay card equipped 1 pc(s) RSM 16RS 24VDC GEM.- 1 change-over 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 change-over
Connection
Screws
Features
equipped
Datasheet (PDF)
Highlights & Details
Relay coupler RSM (RS)
Our service for you
Technical specifications
- Product type
Relay card
- Features
equipped
- Type
RSM 16RS 24VDC GEM.-
- Operating voltage
24 V DC
- Channels
16
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Connection
Screws
- Content
1 pc(s)
- Weight
580.43 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
76 mm
- Width
285 mm
- Height
87 mm
- Dim
(L x W x H) 76 x 285 x 87 mm
- RoHS-compliant
Yes
285
87 mm
76 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
TRUE
Screw connection
IP20
TRUE
Other not-copper alloys
DC
0
0
16
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 200584 Weidmüller Relay card equipped 1 pc(s) RSM 16RS 24VDC GEM.- 1 change-over 24 V DC
User & Safety Instructions
User & Safety Instructions 200584 Weidmüller Relay card equipped 1 pc(s) RSM 16RS 24VDC GEM.- 1 change-over 24 V DC
Description
Relay coupler. RSM-Series, number of contacts: 1, Co, AgNi 90/10, nominal control voltage: 24V DC, Continuous current: 6 A, screw connection.
