Weidmüller Relay card equipped 1 pc(s) RSM 8R 24VDC LP GEM.- 1 change-over 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 change-over
Connection
Screws
Features
equipped
Datasheet (PDF)
Technical specifications
- Product type
Relay card
- Features
equipped
- Type
RSM 8R 24VDC LP GEM.-
- Operating voltage
24 V DC
- Channels
8
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Connection
Screws
- Content
1 pc(s)
- Weight
317 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
76 mm
- Width
145 mm
- Height
87 mm
- Dim
(L x W x H) 76 x 145 x 87 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200427 Weidmüller Relay card equipped 1 pc(s) RSM 8R 24VDC LP GEM.- 1 change-over 24 V DC
User & Safety Instructions
User & Safety Instructions 200427 Weidmüller Relay card equipped 1 pc(s) RSM 8R 24VDC LP GEM.- 1 change-over 24 V DC
Description
Relay coupler. RSM-Series, number of contacts: 1, Co, AgNi 90/10, nominal control voltage: 24V DC, Continuous current: 6 A, screw connection.
This text is machine translated.
This text is machine translated.
Hints

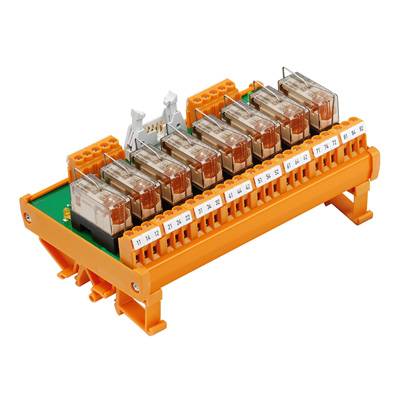

Please note that the relay is not inserted in the opposite figure, but soldered in place.
