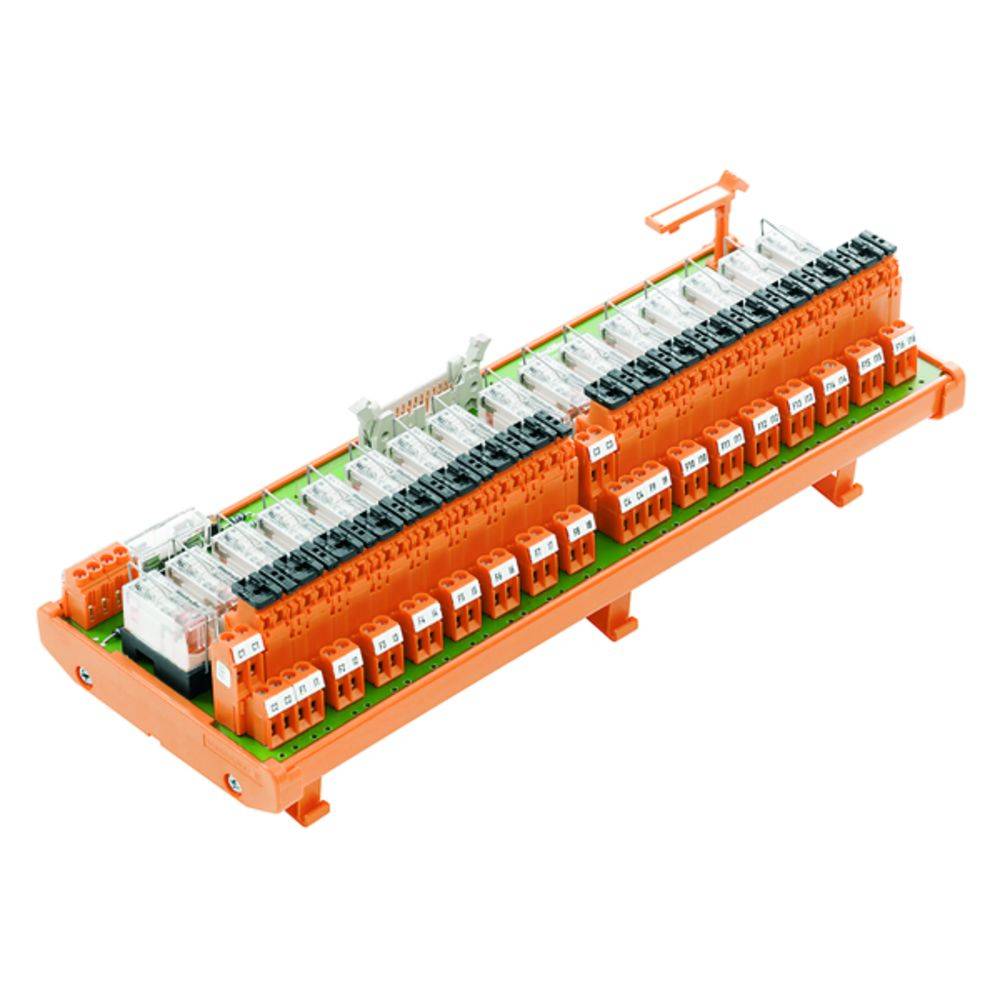

Weidmüller Relay card equipped 1 pc(s) RSM16 1T/CDE-EV 24V-H/V 250 V AC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
250 V AC
Connection
Screws
Features
equipped
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Relay card
- Features
equipped
- Type
RSM16 1T/CDE-EV 24V-H/V
- Operating voltage
250 V AC
- Channels
16
- Switching voltage (max.)
24 V DC
- Switching current (max.)
5 A
- Connection
Screws
- Content
1 pc(s)
- Weight
1080 g
- Max. temperature
+40 °C
- Min. temperature
-25 °C
- Length
290 mm
- Width
109 mm
- Height
75 mm
- Dim
(L x W x H) 290 x 109 x 75 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259625 Weidmüller Relay card equipped 1 pc(s) RSM16 1T/CDE-EV 24V-H/V 250 V AC Piece
User & Safety Instructions
User & Safety Instructions 259625 Weidmüller Relay card equipped 1 pc(s) RSM16 1T/CDE-EV 24V-H/V 250 V AC Piece
Description
Transfer module. Interface, RSM, 16 mit fuse, RCL, screw connection. Digital output interface per relay for the electrical signal transmission between the PLC and the field. Electrical insulation by use of a pluggable relay. Integrated LED status indicator.
