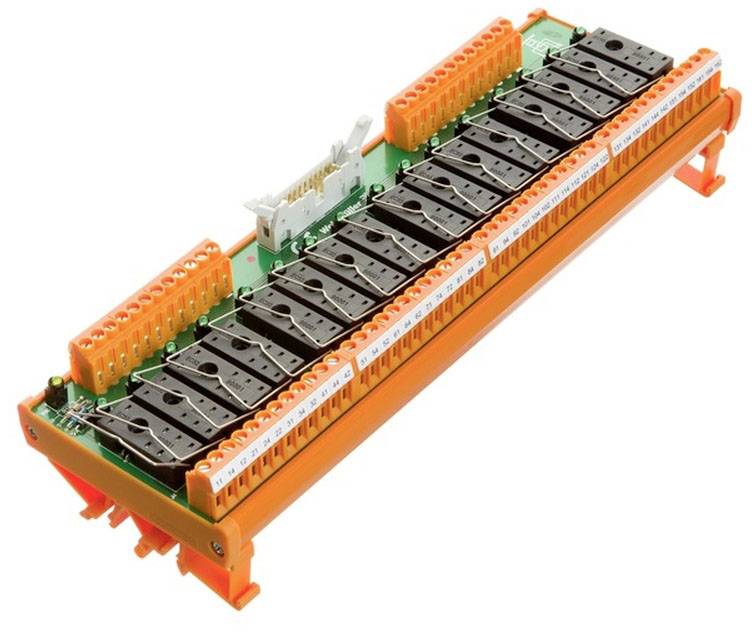

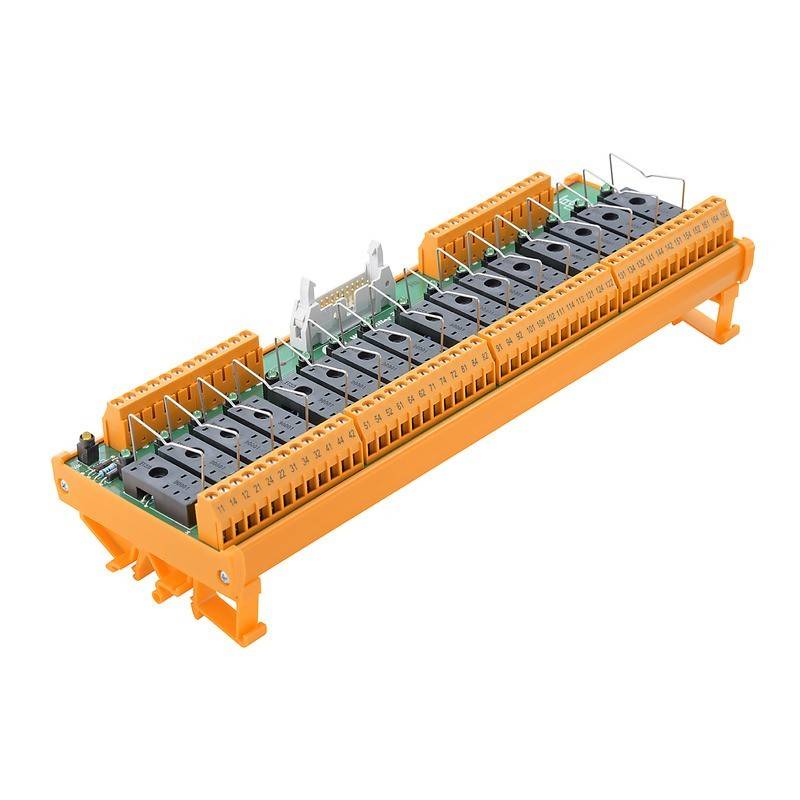

Weidmüller Relay card + LED display 1 pc(s) RSM-16 24V+ BASE S 24 V DC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
24 V DC
Connection
Screws
Features
+ LED display
Datasheet (PDF)
Technical specifications
- LED status display per relay: Green
- connection (control side): LP 5.08 + connector according to IEC60603-13/DIN41651 20-pin
- connection (field side): LP 5.08mm
- Mechanical life: 3 x 10 7 circuits
- Input voltage: 24 V DC ± 10%
- Material contacts: Agni 90/10
- Minimum contact voltage: 5 V
- Minimum contact current: 0.1 A
- Nominal input voltage:< 50 V AC
- Nominal output voltage: 250 V AC
- Overvoltage category Input/output: III
- Overvoltage category Output/output: II
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Clamping range, max.: 6 mm²
- conductor cross-section min. AWG: AWG 26
- wire cross-section max. AWG: AWG 12
- Wire stripping length: 6 mm
- Power supply LED status: Yellow
- Torque, max.: 0.6 Nm
- Fuse per relay: No
- Power supply fuse: No
- Number of poles (control side): 20-pin plug
- Packaging type
Piece
- Product type
Relay card
- Features
+ LED display
- Type
RSM-16 24V+ BASE S
- Operating voltage
24 V DC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
6 A
- Connection
Screws
- Content
1 pc(s)
- Weight
437 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
259 mm
- Width
87 mm
- Height
51 mm
- Dim
(L x W x H) 259 x 87 x 51 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2242432 Weidmüller Relay card + LED display 1 pc(s) RSM-16 24V+ BASE S 24 V DC Piece
