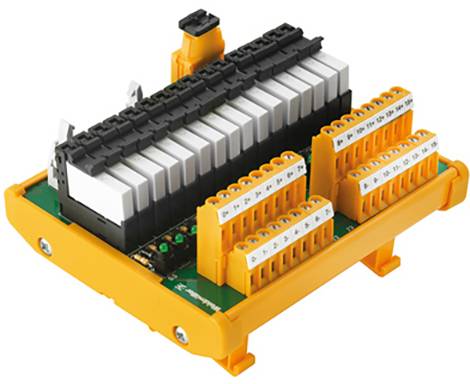

Weidmüller Relay card + LED display 1 pc(s) RSM-16DI 24VDC S 24 V DC
EAN:
Part number:
Item no:
Product type
Relay card
Operating voltage
24 V DC
Connection
Screws
Features
+ LED display
Type
RSM-16DI 24VDC S
Technical specifications
- LED status display per relay: Green
- connection (control side): Plug connector according to IEC60603-13/DIN41651
- Mechanical life: 5 x 10 6 circuits
- Input voltage: 24 V DC ± 10%
- Input current: 13 mA
- Material contacts: Agni gold flash minimum
- contact voltage: 1 V
- Minimum contact current: 1 mA
- Nominal input voltage: ≤ 50 V DC
- Nominal output voltage: ≤ 50 V DC
- Overvoltage category Input/output: III
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- clamping range, max.: 6 mm²
- supply voltage LED status: Yellow
- power supply fuse: 2 A
- number of poles (control side): 20-pin plug
- wiring system: 1-wire
- overvoltage category input/input: III.
- Product type
Relay card
- Features
+ LED display
- Type
RSM-16DI 24VDC S
- Operating voltage
24 V DC
- Switching voltage (max.)
24 V DC
- Switching current (max.)
0.1 A
- Connection
Screws
- Content
1 pc(s)
- Weight
343.24 g
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Length
124 mm
- Width
109 mm
- Height
72 mm
- Dim
(L x W x H) 124 x 109 x 72 mm
DIN rail (top hat rail) 35 mm
124
109 mm
72 mm
24 V
20
Screw connection
2
- UKCA
yes
