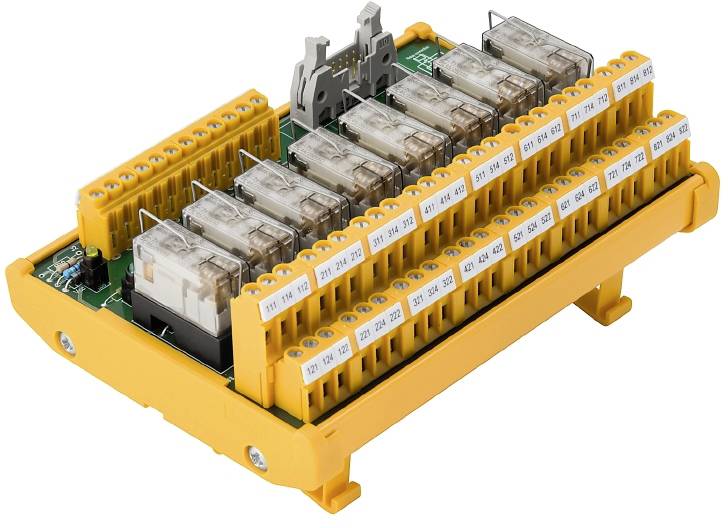

Image similar
Weidmüller Relay card + LED display 1 pc(s) RSM-8 115VAC/DC 2CO S 2 change-overs 115 V DC/AC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
115 V DC/AC
Contact type
2 change-overs
Connection
Screws
Technical specifications
- LED status display per relay: Green
- connection (control side): LP 5.08 mm
- connection (field side): LP2N 5.08mm
- Mechanical life: 30 x 10 6 circuits
- Input voltage: 115 VAC/DC ± 10%
- Input current: AC 3.3 mA / DC 4.8 mA
- Material contacts: Agni 90/10
- Minimum contact voltage: 5 V
- Minimum contact current: 0.1 A
- Nominal input voltage: <50 V AC
- Nominal output voltage: 250 V AC
- Overvoltage category Input/output: III
- Overvoltage category Output/output: III
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Clamping range, max.: 6 mm²
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 12
- stripping length: 6 mm
- tightening torque, max.: 0.6 Nm
- Packaging type
Piece
- Product type
Relay card
- Features
+ LED display
- Type
RSM-8 115VAC/DC 2CO S
- Operating voltage
115 V DC/AC
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Connection
Screws
- Content
1 pc(s)
- Weight
456.47 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
149 mm
- Width
109 mm
- Height
71 mm
- Dim
(L x W x H) 149 x 109 x 71 mm
- UKCA
yes
