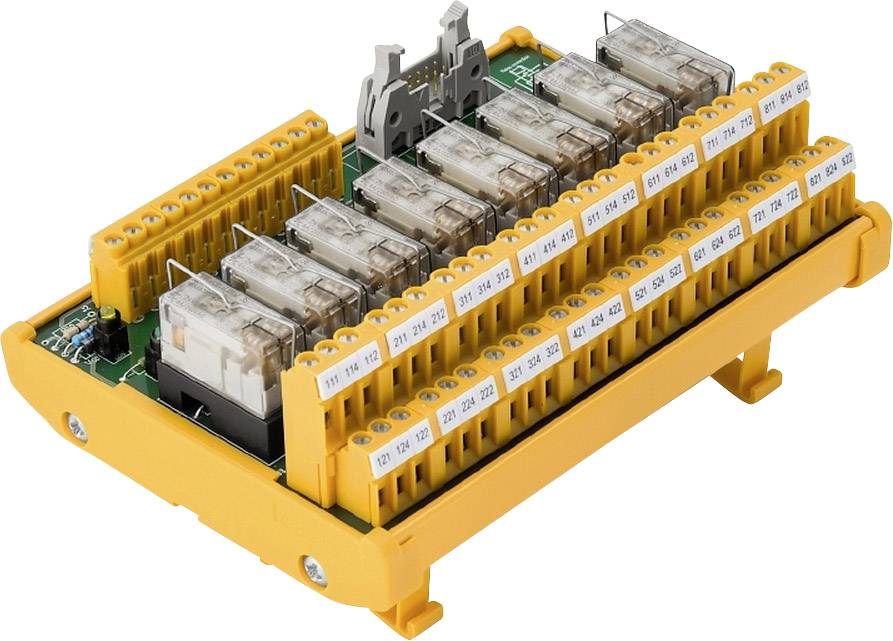

Weidmüller Relay card + LED display 1 pc(s) RSM-8 230VAC 2CO Z 2 change-overs 230 V AC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
230 V AC
Contact type
2 change-overs
Connection
Pull spring
Datasheet (PDF)
Technical specifications
- LED status display per relay: Green
- connection (control side): LMZF
- connection (field side): LM2NZF 5.08mm
- Mechanical life: 10 x 10 6 circuits
- Input voltage: 230 V AC ± 10%
- Input current: 3.3 mA
- Material contacts: Agni 90/10
- Minimum contact voltage: 5 V
- Minimum contact current: 0.1 A
- Nominal input voltage<: 50 V AC
- Nominal output voltage: 250 V AC
- Overvoltage category Input/output: III
- Overvoltage category Output/output: III
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Clamping range, max.: 2.5 mm²
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 14
- stripping length: 7 mm
- Packaging type
Piece
- Product type
Relay card
- Features
+ LED display
- Type
RSM-8 230VAC 2CO Z
- Operating voltage
230 V AC
- Channels
2
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Connection
Pull spring
- Content
1 pc(s)
- Weight
369.11 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
149 mm
- Width
109 mm
- Height
66 mm
- Dim
(L x W x H) 149 x 109 x 66 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2242473 Weidmüller Relay card + LED display 1 pc(s) RSM-8 230VAC 2CO Z 2 change-overs 230 V AC Piece
