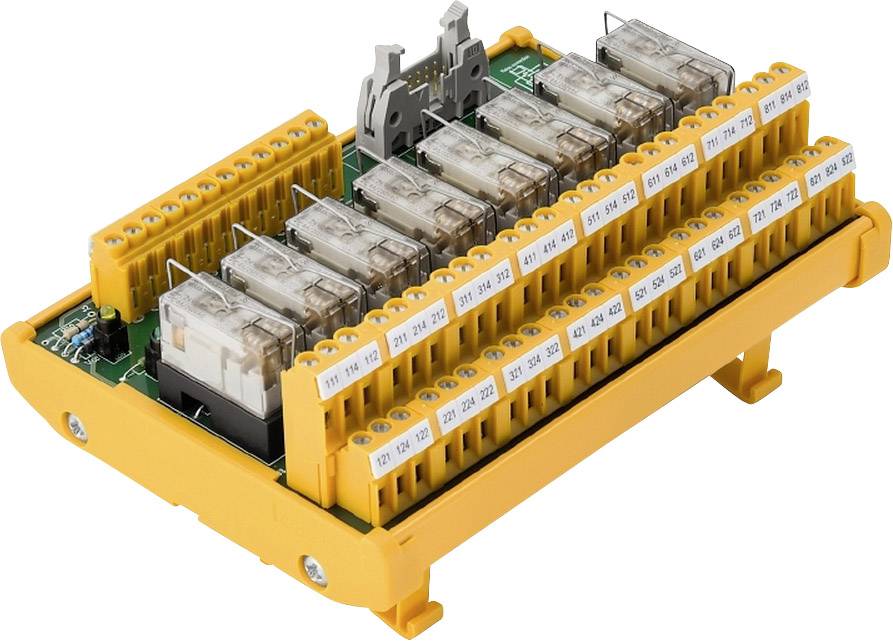

Image similar
Weidmüller Relay card + LED display 1 pc(s) RSM-8 24V+ 2CO Z 2 change-overs 24 V DC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
24 V DC
Contact type
2 change-overs
Connection
Pull spring
Technical specifications
- LED status display per relay: Green
- connection (control side): LMZF 5.08 + connector according to IEC60603-13/DIN41651 10-pin
- connection (field side): LM2NZF 5.08mm
- Mechanical life: 30 X 10 6 circuits
- Input voltage: 24 V DC ± 10%
- Input current: 16.7 mA
- Material contacts: Agni 90/10
- Minimum contact voltage: 5 V
- Minimum contact current: 0.1 A
- nominal input voltage: <50 V AC
- Nominal output voltage: 250 V AC
- Overvoltage category Input/output: III
- Overvoltage category Output/output: III
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Clamping range, max.: 2.5 mm²
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 14
- stripping length: 7 mm
- Supply voltage LED status: Yellow
- Packaging type
Piece
- Product type
Relay card
- Features
+ LED display
- Type
RSM-8 24V+ 2CO Z
- Operating voltage
24 V DC
- Channels
2
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Connection
Pull spring
- Content
1 pc(s)
- Weight
396.61 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
149 mm
- Width
109 mm
- Height
66 mm
- Dim
(L x W x H) 149 x 109 x 66 mm
- UKCA
yes
