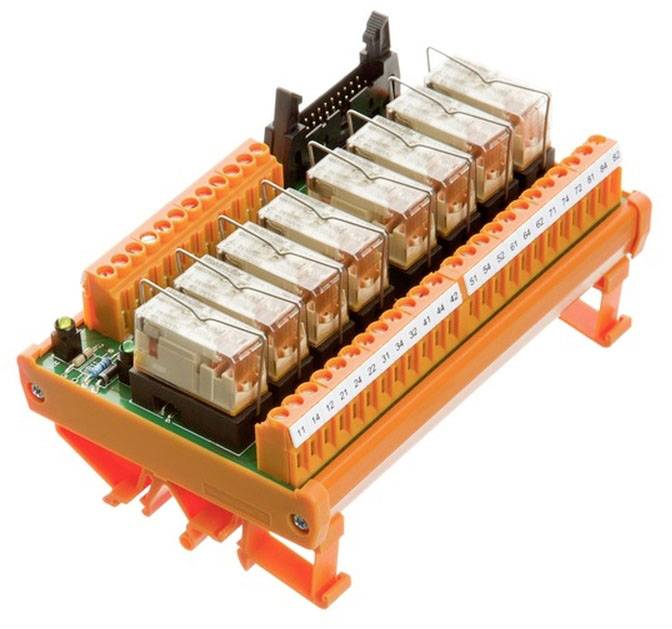

Buy Weidmüller Relay card + LED display 1 pc(s) RSM-8H 24V+ 1CO S 1 change-over 24 V DC Piece

Image similar

Packaging type

Piece

Product type

Relay card

Operating voltage

24 V DC

Contact type

1 change-over

Connection

Screws

Unavailable

Sales and shipping:

Technical specifications

LED status display per relay: Green
connection (control side): LP 5.08 + connector according to IEC60603-13/DIN41651 20-pin
connection (field side): LP 5.08mm
Mechanical life: 3 x 10 7 circuits
Input voltage: 24 V DC ± 10%
Input current: 16.7 mA
Material contacts: Agni 90/10
Minimum contact voltage: 5 V
Minimum contact current: 0.1 A
Nominal input voltage: <50 V AC
Nominal output voltage: 250 V AC
Overvoltage category Input/output: III
Overvoltage category Output/output: II
Pollution degree: 2
clamping range, min.: 0.13 mm²
Clamping range, max.: 6 mm²
conductor cross-section min. AWG: AWG 26
wire cross-section max. AWG: AWG 12
Wire stripping length: 6 mm
Power supply LED status: Yellow
Torque, max.: 0.6 Nm
Fuse per relay: No
Power supply fuse: No
Number of poles (control side): 20-pin plug
