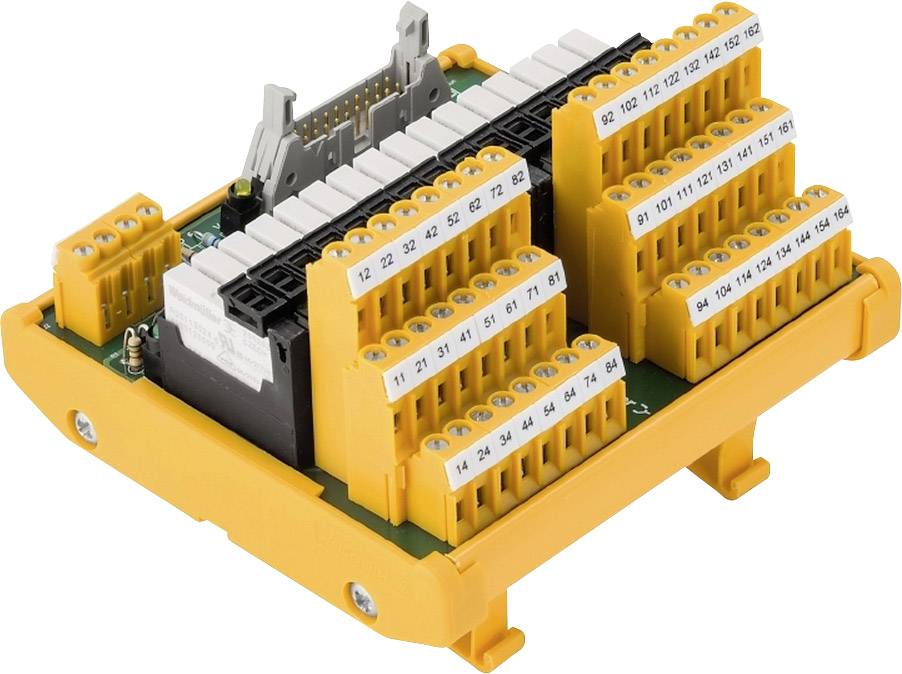

Weidmüller Relay card + LED display 1 pc(s) RSMS-16H 24V+ 1CO Z 1 change-over 24 V DC Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Relay card
Operating voltage
24 V DC
Contact type
1 change-over
Connection
Pull spring
Technical specifications
- LED status display per relay: Green
- connection (control side): Connector according to IEC60603-13/DIN41651
- connection (field side): LM3RZF 5.08
- Mechanical life: 5 x 10 6 circuits
- Input voltage: 24 V DC ± 10%
- Input current: 7.1 mA
- Material contacts: Agni 90/10
- Minimum contact voltage: 5 V
- Minimum contact current: 100 mA
- Nominal input voltage<: 50 V AC
- Nominal output voltage: 250 V AC
- Overvoltage category Input/output: III
- Overvoltage category Output/output: II
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Clamping range, max.: 2.5 mm²
- conductor cross-section min. AWG: AWG 26
- conductor cross-section max. AWG: AWG 14
- stripping length: 7 mm
- Power supply LED status: Yellow
- Fuse per relay: No
- Power supply fuse: No
- Number of poles (control side): 20-pin plug
- Packaging type
Piece
- Product type
Relay card
- Features
+ LED display
- Type
RSMS-16H 24V+ 1CO Z
- Operating voltage
24 V DC
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Switching current (max.)
4.5 A
- Connection
Pull spring
- Content
1 pc(s)
- Weight
367.24 g
- Max. temperature
+50 °C
- Min. temperature
-25 °C
- Length
112 mm
- Width
109 mm
- Height
76 mm
- Dim
(L x W x H) 112 x 109 x 76 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2242550 Weidmüller Relay card + LED display 1 pc(s) RSMS-16H 24V+ 1CO Z 1 change-over 24 V DC Piece
