Buy Weidmüller RJ45C5 R1V 3.2N4N RL Weidmüller RJ45C5 R1V 3.2N4N RL N/A 2562970000 Socket, vertical vertical No. of pins (RJ

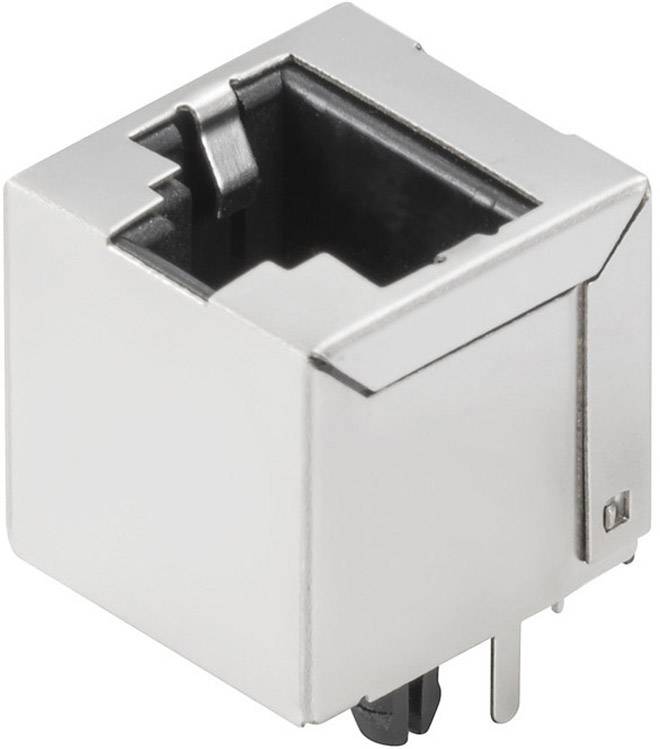

Metal socket connector, square shaped, suitable for network connections, typical RJ45 structure, top view.

Image similar

Product type

RJ45 connector

Connector type

Socket, vertical vertical

No. of pins

Specification

CAT 5

Connector standard

RJ45

Datasheet (PDF)

Fast track dispatch on Wed, 7 Oct

2 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 200 pc(s))

Set(s)

Total (€ 1.41 / piece)

€ 281.51

plus VAT.

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

RJ45 Plug connector CAT 5

Our service for you

Technical specifications

Protection class: IP20
Shield material: Brass
Screen surface: Nickel-plated
Nominal current: 1.5 A
Nominal voltage: 125 V/AC
Pitch: 1.27 mm
Insulation resistance: 1000 MΩ at 500 V/DC
Output angle: 180°
Mounting on the circuit board: THT/THR-soldering connection
Soldering pin length: 3.2 mm
Plug-in cycles: 750
Connection: 8-wire
mounting hole diameter: 0.9 mm
withstand voltage Contact / Contact: 1000 V/AC

Type: RJ45C5 R1V 3.2N4N RL

Product type: RJ45 connector

Connector type: Socket, vertical vertical

No. of pins: 8

: CAT 5

Connector standard: RJ45

Connection: Soldering
THR
THT

No. of ports: 1 x

No. of rows: 1

Weight: 10 g

Factory colour: Silver
Black

Content: 200 pc(s)

Contact material: Phosphorus bronze gold plated

Material: PA9T

Width: 16 mm

Height: 20 mm

Length: 16.7 mm

RoHS-compliant: Yes

Features: no LED display

Max. temperature: +85 °C

Min. temperature: -40 °C

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connector type

No. of pins

Weidmüller RJ45C5 R1V 3.2N4N RL Weidmüller RJ45C5 R1V 3.2N4N RL N/A 2562970000 Socket, vertical vertical No. of pins (RJ) 8 Silver, Black 200 pc(s) 2562970000 Socket, vertical vertical No. of pins (RJ) 8 Silver, Black 200 pc(s)

Item no:1665761

This article

Socket, vertical vertical

Weidmüller RJ45C5 T1V 4.0N4N TY RJ45 Plug connector CAT 5 2436450000 Socket, vertical vertical No. of pins (RJ) 8 Silver, Black 300 pc(s)

Item no:1665747

Socket, vertical vertical

Weidmüller RJ45C5 R1D 3.3E4N RL Weidmüller RJ45C5 R1D 3.3E4N RL N/A 2562910000 Socket, horizontal mount No. of pins (RJ) 8 Silver, Black 200 pc(s) 2562910000 Socket, horizontal mount No. of pins (RJ) 8 Silver, Black 200 pc(s)

Item no:1665758

Socket, horizontal mount

Weidmüller RJ45C5 R1U 3.3E4N RL RJ45 Plug connector CAT 5 2562930000 Socket, horizontal mount No. of pins (RJ) 8 Silver, Black 180 pc(s)

Item no:1665760

Socket, horizontal mount

Weidmüller RJ45C5 T1D 3.2E4G/Y TY Weidmüller RJ45C5 T1D 3.2E4G/Y TY N/A 2562820000 Socket, horizontal mount No. of pins (RJ) 12 Silver, Black 140 pc(s) 2562820000 Socket, horizontal mount No. of pins (RJ) 12 Silver, Black 140 pc(s)

Item no:1665767

Socket, horizontal mount

Weidmüller RJ45C5 R1D 3.2E4G/Y RL Weidmüller RJ45C5 R1D 3.2E4G/Y RL N/A 2562870000 Socket, horizontal mount No. of pins (RJ) 12 Silver, Black 200 pc(s) 2562870000 Socket, horizontal mount No. of pins (RJ) 12 Silver, Black 200 pc(s)

Item no:1665768

Socket, horizontal mount

Weidmüller RJ45C5 T1U 2.8E4G/Y TY Weidmüller RJ45C5 T1U 2.8E4G/Y TY N/A 2562880000 Socket, horizontal mount No. of pins (RJ) 12 Silver, Black 140 pc(s) 2562880000 Socket, horizontal mount No. of pins (RJ) 12 Silver, Black 140 pc(s)

Item no:1665769

Socket, horizontal mount

Weidmüller RJ45C5 T1V 3.2N4G/Y TY RJ45 Plug connector CAT 5 2562960000 Socket, vertical vertical No. of pins (RJ) 12 Silver, Black 120 pc(s)

Item no:1665771

Socket, vertical vertical
