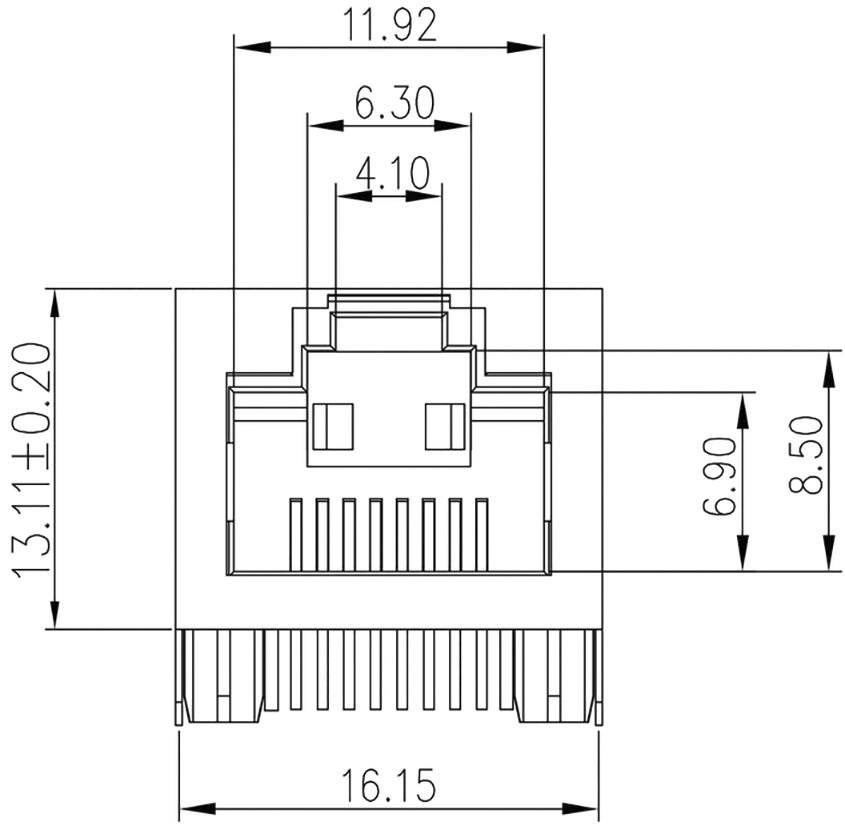

Stroke drawing/circuit diagram

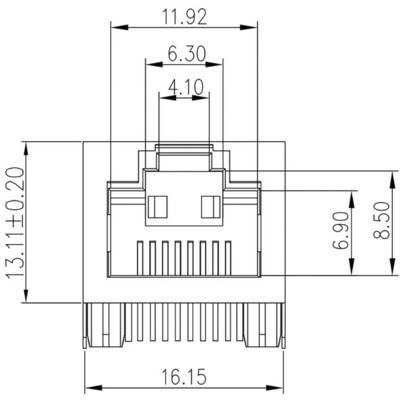

Stroke drawing/circuit diagram
Weidmüller RJ45C5E R1U 2.8N4N RL Weidmüller RJ45C5E R1U 2.8N4N RL N/A 2638490000 Socket No. of pins (RJ) 8 Black, Cyan 2
EAN:
Part number:
Item no:
Product type
RJ45 connector
Connector type
Socket
No. of pins
8
Specification
CAT 5e
Connector standard
RJ45
Technical specifications
- Storage temperature: -40 °C - +85 °C
- Nominal voltage: 125 V
- Nominal current: 1.5 A
- Voltage strength Contact / Contact: 1000 V/DC, 1000 V/AC
- Output angle: 90°
- LED: No
- Mounting on the circuit board: THT/THR-Solder connection
- Grid: 1.02 mm
- Latch option: Top
- Shield material: Brass, nickel-plated
- shield surface: Nickel-plated
- Shielding: Yes
- Protection type: IP20
- Plug cycles:
- Insulation material: PA 9T
- Flammability class: 750 V-0
- solder pin length 2.8 mm
- Type
RJ45C5E R1U 2.8N4N RL
- Product type
RJ45 connector
- Connector type
Socket
- No. of pins
8
CAT 5e
- Connector standard
RJ45
- Connection
THT
THR
Soldering
- No. of rows
1
- Weight
7.095 g
- Factory colour
Black
Cyan
- Content
200 pc(s)
- Contact material
Phosphorus bronze gold plated
- Moisture Sensitiviy Level (MSL)
1
- Width
16.4 mm
- Height
13.11 mm
- Length
15.7 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
