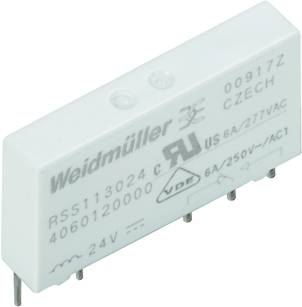

Weidmüller RSS113005 05VDC-REL1U Plug-in relay 5 V DC 6 A 1 change-over 20 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
5 V DC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
250 V DC
Switching current (max.)
6 A
Datasheet (PDF)
Technical specifications
- Product type
Plug-in relay
- Type
RSS113005 05VDC-REL1U
- Coil nominal voltage
5 V DC
- Min. pick-up voltage
3.5 V DC
- Resistance (coil)
147 Ω
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Creepage distance (coil/clips)
5.5 mm
- Connection
Jack connector
- Fall time
4 ms
- Durability
5 x 106 circuits
IP67
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Weight
4.64 g
- Factory colour
White
- Width
5 mm
- Height
28 mm
- Depth
15 mm
- Dim
(W x H x D) 5 x 28 x 15 mm
- Industrial packaging
Yes
- Content
20 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 390967 Weidmüller RSS113005 05VDC-REL1U Plug-in relay 5 V DC 6 A 1 change-over 20 pc(s)
User & Safety Instructions
User & Safety Instructions 390967 Weidmüller RSS113005 05VDC-REL1U Plug-in relay 5 V DC 6 A 1 change-over 20 pc(s)
Description
Relays. Terms Series, number of contacts: 1, Co, AgNi, nominal control voltage: 5 V DC, Continuous current: 6 A, plug connection
